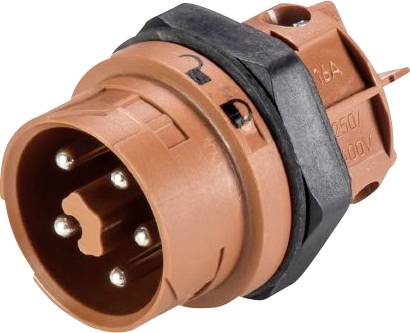

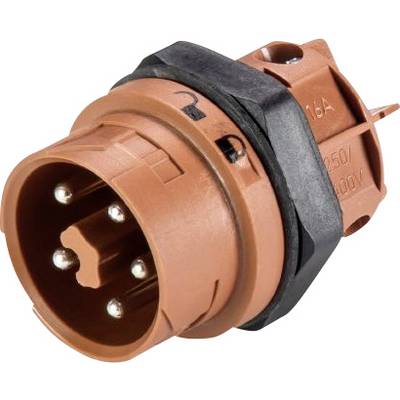

Wieland Electric 46.052.5050.4 Bullet connector Plug, mount Total number of pins: 5 Series (round connectors): RST® MINI
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, mount
Total no. of pins
5
Connection
Screws
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
RST ® MINI BUILT-IN PLUG RSTI16, M20
Our service for you
Technical specifications
- Type
RST16I5 S S1 M03 L BR
- Product type
Bullet connector
- Connector type
Plug, mount
- Total no. of pins
5
- Connection
Screws
- Factory colour
Brown
- Content
1 pc(s)
- Max. temperature
+125 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Seal
Bayonet
- Leading contact (PE)
No
- Nominal voltage
50 V
- Cable Ø (max.)
2.5 mm
- Cable Ø up to
0.25 mm
- Connection angle
180°
- Mounting hole diameter
24 mm
- Manufacturer part #
46.052.5050.4
- Industrial packaging
No
- Cable Ø range
0.25 - 2.5 mm
- Number of pins
5
- Length
24.50 mm
- max. cross section
2.5 mm²
- Min. cross section
0.25 mm²
- Cross-section range
0.25 - 2.5 mm²
- RoHS-compliant
Yes
- Series
RST® MINI
24
Plug
TRUE
24 mm
Screw connection
Brown
Integrated in plug-in connector
16 A
250 V
5
34.5 m
Polyamide (PA)
Silver-plated
3
Straight
TRUE
4 kV
0.75 mΩ
CuZn
1, 2, 3, 4, 5
Brown
0.054
- UKCA
not relevant
