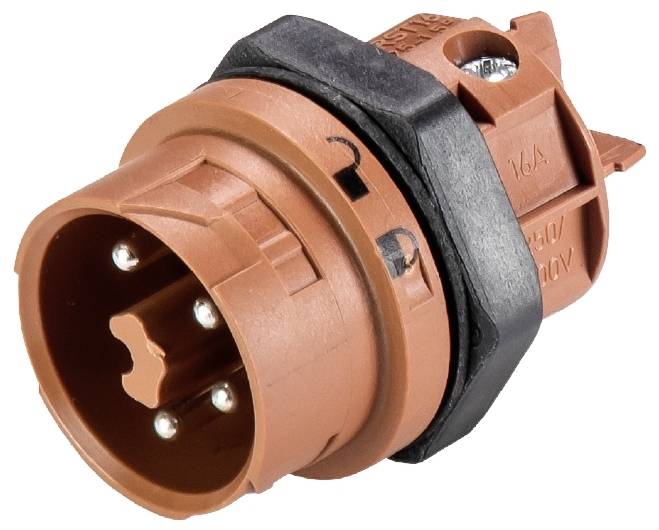

Wieland Electric 46.052.5051.4 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
5% = € 0.48
€ 8.76
5
7% = € 0.68
€ 8.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Appliance connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
16 A
- Number of pins
4
IP66
24 mm
Plug
TRUE
24 mm
Screw connection
Integrated in plug-in connector
16 A
50 V
4
34.5 mm
Polyamide (PA)
Silver-plated
3
Straight
4 kV
0.75 mOhm
CuZn
No thread connection
IP66
1
Other
0.054 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
8002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273630 Wieland Electric 46.052.5051.4 Appliance connector
Description
RST® MINI device connection
Standard
straight
M20.2
Number of pins: 4
Plug version
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 16 A
Coding color / contact insert signal brown
This text is machine translated.
Standard
straight
M20.2
Number of pins: 4
Plug version
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 16 A
Coding color / contact insert signal brown
This text is machine translated.
