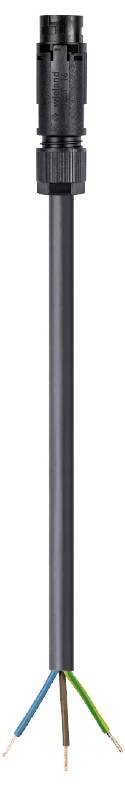

Wieland Electric 46.432.2554.1 Cable Black 2.5 m
EAN:
Part number:
Item no:
Number (Package size 100 pc(s))
Total (€ 15.42 / piece)
€ 1,542.02
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
2.5 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
9.2 mm
- Cable Ø range
9.2 - 11.9 mm
- Number of pins
3
IP66
- Series
RST Mini
TRUE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
2500 mm
3
Black
9.2-11.9 mm
Silver-plated
3
4 kV
29.25 mOhm
IP66
L, N, PE
Black
1.676 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
Ultrasonic compressed wire ends
None
None
None
None
9005
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273646 Wieland Electric 46.432.2554.1 Cable Black 2.5 m
Description
RST® MINI connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 2.5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 2.5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert black
This text is machine translated.
