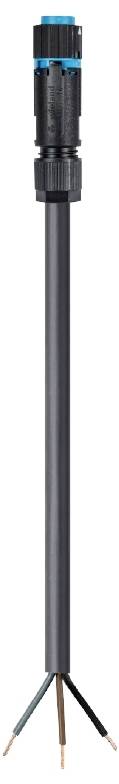

Wieland Electric 46.433.0533.9 Cable Black 0.5 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
0.5 m
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
11.3 mm
- Cable Ø range
11.3 - 11.9 mm
- Number of pins
3
IP66
- Series
RST Mini
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
500 mm
3
Black
11.3-11.9 mm
Silver-plated
3
4 kV
4.17 mOhm
IP66
1, 2, 3
Blue
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
None
None
None
None
5012
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273903 Wieland Electric 46.433.0533.9 Cable Black 0.5 m
Description
RST® MINI connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 0.5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 0.5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
This text is machine translated.
