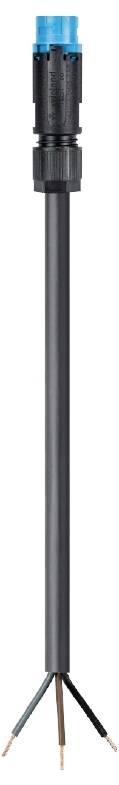

Wieland Electric 46.433.5034.9 Cable Black 5 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 31.08
3
4% = € 1.21
€ 29.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.
Technical specifications
- Product type
Cable
- Cable length
5 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
11.3 mm
- Cable Ø range
11.3 - 11.9 mm
- Number of pins
3
IP66
- Series
RST Mini
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
5000 mm
3
Black
11.3-11.9 mm
Silver-plated
3
4 kV
34.95 mOhm
IP66
1, 2, 3
Blue
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
None
None
None
None
5012
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273898 Wieland Electric 46.433.5034.9 Cable Black 5 m
Description
RST® MINI connection cable
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 5 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
