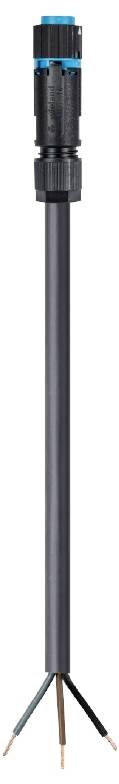

Wieland Electric 46.433.6033.9 Cable Black
EAN:
Part number:
Item no:
Technical specifications
- Type A
Socket
- Type B
Open cable ends
- Factory colour
Black
- Cable Ø range
11.3 - 11.9 mm
IP66
- Number of pins
3
- Test current
16 A
- Rated voltage
250 V
- Cable Ø (max.)
11.9 mm
- Cable Ø up to
11.3 mm
FALSE
2.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
6000 mm
3
Black
11.3-11.9 mm
Silver-plated
3
4 kV
41.79 mOhm
IP66
1, 2, 3
Blue
9 mm
35 mm
Device connection cable
Bus
Free conductor end
100 °C
Ultrasonic compressed wire ends
None
None
None
None
5012
- Product type
Cable
Description
RST® MINI connection cable
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
This text is machine translated.
Socket - free cable end
Number of poles: 3
Rated voltage: 250 V
Rated current 16 A
Cable type H07RN-F
Total length 6 m
Conductor nominal cross-section 2.5 mm²
Coding color / contact insert light blue
