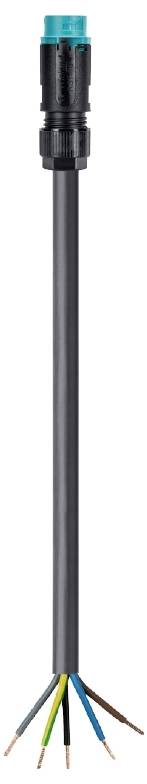

Wieland Electric 46.452.5054.6 Cable Black 5 m
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Technical specifications
- Product type
Cable
- Cable length
5 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
12.2 mm
- Cable Ø up to
11.2 mm
- Cable Ø range
11.2 - 12.2 mm
- Number of pins
5
IP66
- Series
RST Mini
FALSE
1.5 mm²
H07RN-F
Black
Integrated in plug-in connector
16 A
250 V
5000 mm
5
Black
11.2-12.2 mm
Silver-plated
3
4 kV
57.75 mOhm
IP66
L, N, PE, 1, 2
Blue
5.745 kWh
9 mm
35 mm
Device connection cable
Free conductor end
Plug
Ultrasonic compressed wire ends
None
None
None
None
5018
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273962 Wieland Electric 46.452.5054.6 Cable Black 5 m
Description
RST® MINI connection cable
Free cable end - connector
Number of pins: 5
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert, turquoise
This text is machine translated.
Free cable end - connector
Number of pins: 5
Rated voltage: 250 V
Rated current 16 A
Conductor type H07RN-F - Enhanced Version
Total length 5 m
Conductor nominal cross-section 1.5 mm²
Coding color / contact insert, turquoise
This text is machine translated.
