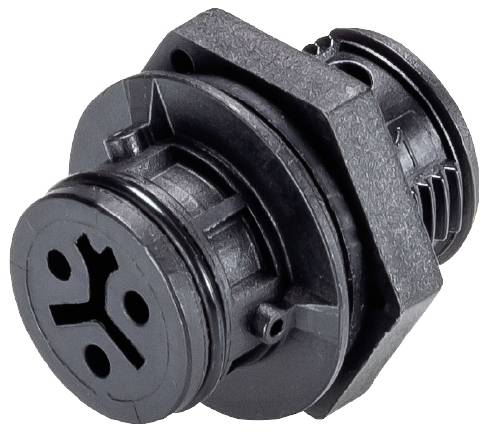

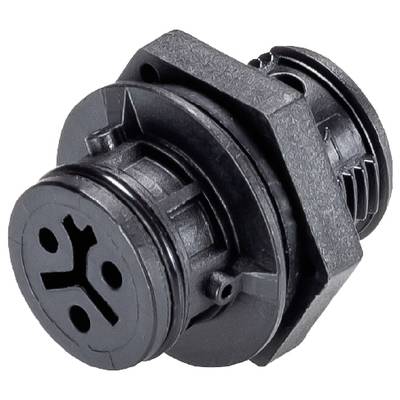

Wieland Electric 4L.031.4053.1 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
5
6% = € 0.27
€ 4.34
10
8% = € 0.37
€ 4.24
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
8 A
- Number of pins
3
IP66
19.2 mm
Bus
TRUE
19.2 mm
Screw connection
Integrated in plug-in connector
8 A
250 V
3
21.9 mm
Polyamide (PA)
Silver-plated
3
Straight
TRUE
2.5 kV
0.55 mOhm
CuZn
No thread connection
IP66
1
1, 2, PE
Black
0.22-1 mm²
0.2-1 mm²
100 °C
9005
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274158 Wieland Electric 4L.031.4053.1 Appliance connector
Description
RST® MICRO device connection
Standard
straight
M14
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Contact seal yes
Coding color / contact insert black
This text is machine translated.
Standard
straight
M14
Number of poles: 3
Socket version
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Contact seal yes
Coding color / contact insert black
This text is machine translated.
