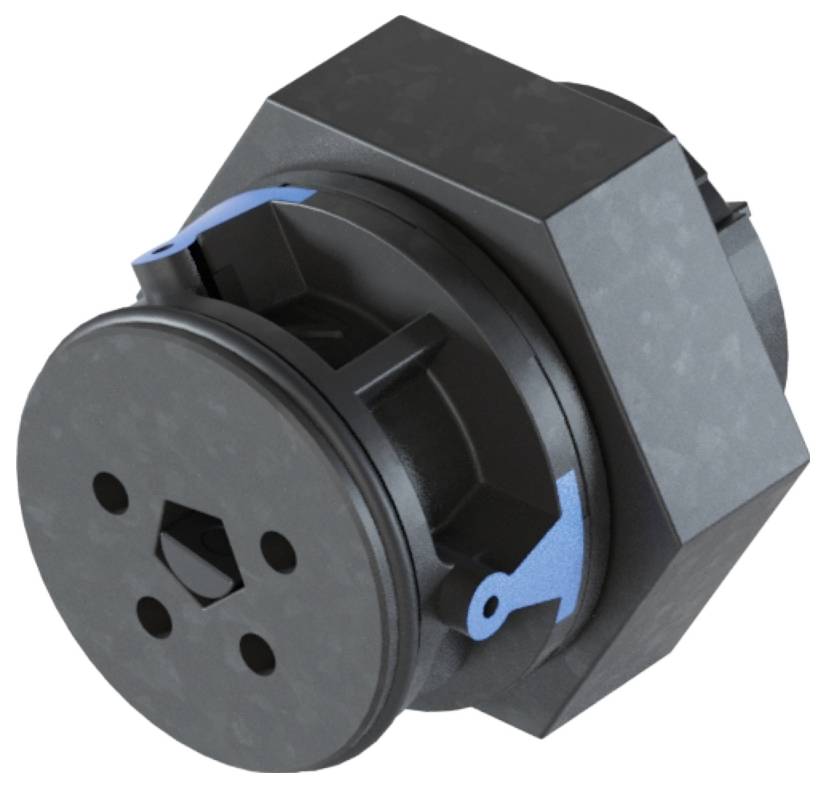

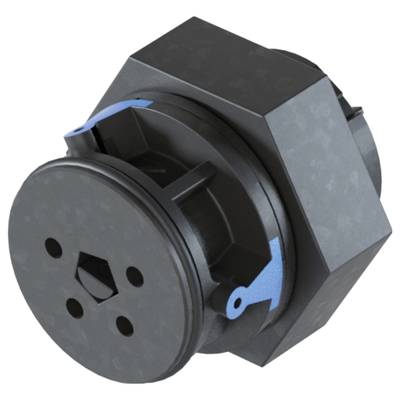

Wieland Electric 4L.041.4043.9 Appliance connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
3
5% = € 0.41
€ 7.14
5
8% = € 0.58
€ 6.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Technical specifications
- Product type
Appliance connector
- Type A
Socket
- Type B
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
8 A
- Number of pins
4
IP66
20 mm
Bus
TRUE
20 mm
Screw connection
Integrated in plug-in connector
8 A
250 V
4
24.4 mm
Polyamide (PA)
Silver-plated
3
TRUE
2.5 kV
0.55 mOhm
CuZn
IP66
1
Blue
0.22-1 mm²
0.2-1 mm²
5012
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274322 Wieland Electric 4L.041.4043.9 Appliance connector
Description
RST® MICRO device connection
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Contact seal yes
Coding color / contact insert light blue
This text is machine translated.
straight
Number of pins: 4
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 8 A
Contact seal yes
Coding color / contact insert light blue
This text is machine translated.
