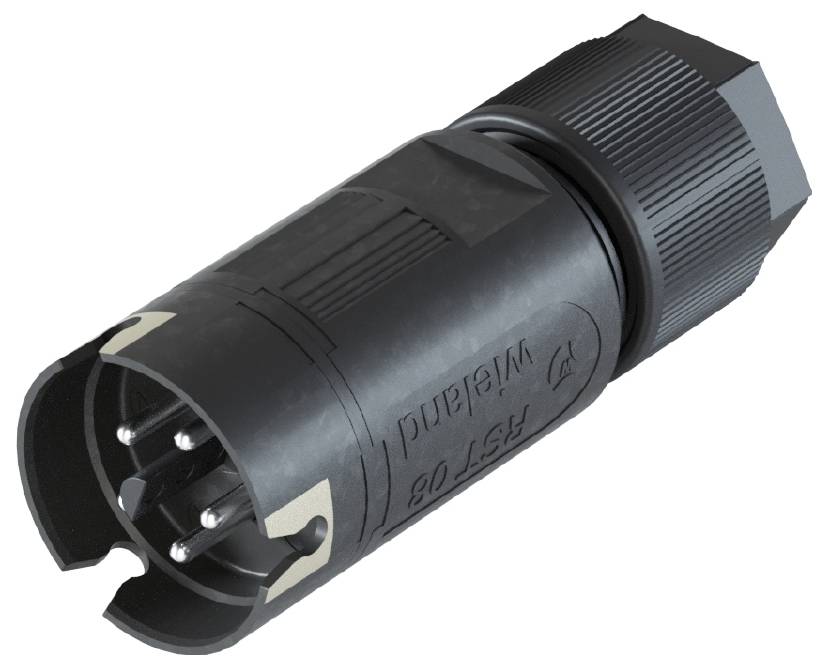

Wieland Electric 4L.052.3051.8 Connector
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Plug
- Connector version
straight
- Connection
Screw connection
- Rated voltage
50 V
- Test current
8 A
- Cable Ø (max.)
10.6 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 10.6 mm
- Number of pins
5
IP66
20 mm
Plug
TRUE
20 mm
Screw connection
Integrated in plug-in connector
8 A
50 V
TRUE
5
56 mm
Polyamide (PA)
5-10.6 mm
Silver-plated
3
TRUE
2.5 kV
0.55 mOhm
CuZn
IP66
1
Grey
0.22-1 mm²
0.2-1 mm²
100 °C
7032
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273961 Wieland Electric 4L.052.3051.8 Connector
Description
RST® MICRO connector
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Contact seal yes
Coding color / contact insert pebble gray
This text is machine translated.
straight
Number of pins: 5
Connector
Connection type: screw terminals.
Rated voltage 50 V / 120 V
Rated current 8 A
Cable diameter 5 - 10.6 mm
Contact seal yes
Coding color / contact insert pebble gray
This text is machine translated.
