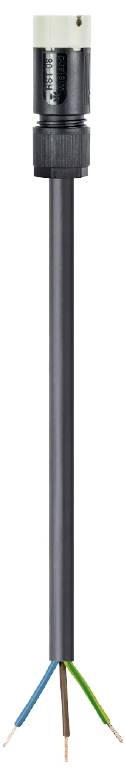

Wieland Electric 4L.437.4038.8 Cable Black 4 m
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
4% = € 0.67
€ 14.45
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Cable
- Cable length
4 m
- Type A
Open cable ends
- Type B
Plug
- Factory colour
Black
- Connection
Cable with open ends
- Rated voltage
250 V
- Test current
6 A
- Cable Ø (max.)
7 mm
- Cable Ø up to
6.2 mm
- Cable Ø range
6.2 - 7 mm
- Number of pins
3
IP66
- Series
RST Mini
- System
gesis® MICRO
FALSE
0.75 mm²
Other
Black
Integrated in plug-in connector
6 A
250 V
4000 mm
3
Black
6.2-7 mm
Silver-plated
3
TRUE
2.5 kV
92.3 mOhm
IP66
1, 2, PE
Grey
9 mm
35 mm
Device connection cable
Free conductor end
Plug
100 °C
Ultrasonic compressed wire ends
60 °C
None
None
None
None
7032
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274176 Wieland Electric 4L.437.4038.8 Cable Black 4 m
Description
RST® MICRO connection cable
Free cable end - connector
Number of poles: 3
Rated voltage 250 V / 400 V
Rated current 6 A
Cable type H05RN-F
Total length 4 m
Conductor nominal cross-section 0.75 mm²
Contact seal yes
Coding color / contact insert pebble gray
This text is machine translated.
Free cable end - connector
Number of poles: 3
Rated voltage 250 V / 400 V
Rated current 6 A
Cable type H05RN-F
Total length 4 m
Conductor nominal cross-section 0.75 mm²
Contact seal yes
Coding color / contact insert pebble gray
This text is machine translated.
