Wieland Electric 55.503.1253.0 Continuity Screws, Screws Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Number (Package size 100 pc(s))
Total (€ 1.60 / piece)
€ 159.66
plus VAT.
14-day return policy included
Highlights & Details
THROUGH TERMINAL-WKM 2.5 F1 / 15/V0
- WKM 2,5 F1 / 15/V0
Technical specifications
- Product type
Continuity
- Connection
Screws
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
55.503.1253.0
- Content
100 pc(s)
- Type
WKM 2,5 F1 / 15/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 15 mm
Grey
500 V
-40-55 °C
V0
TRUE
Soldering flag connection
Screw connection
1
2
0.5-4 mm²
0.5-2.5 mm²
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271740 Wieland Electric 55.503.1253.0 Continuity Screws, Screws Grey 100 pc(s)
Description

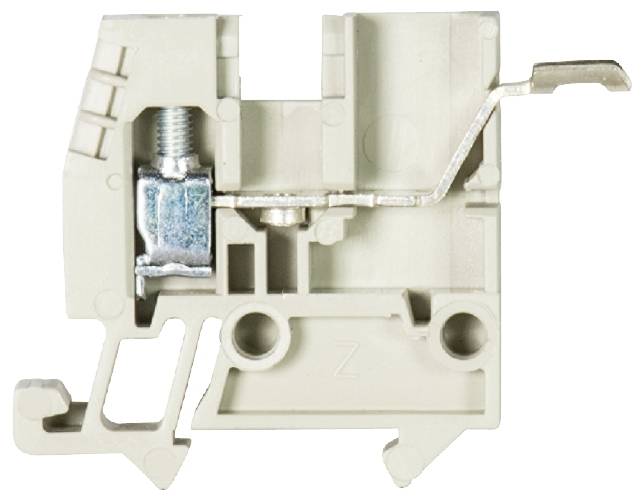

Through terminal block with solder tag connection for mounting on TS 15
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
