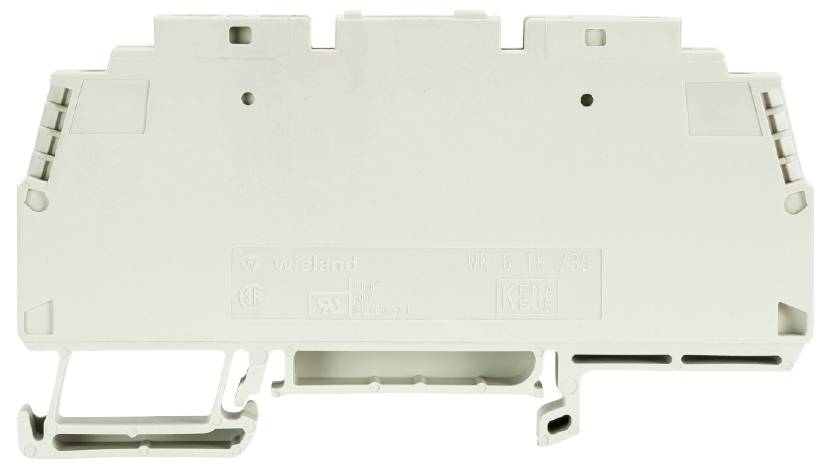

Wieland Electric 56.106.0553.0 Test terminal Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Test terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
32 A
Number (Package size 50 pc(s))
Total (€ 6.47 / piece)
€ 323.53
plus VAT.
14-day return policy included
Highlights & Details
Measuring-separator terminal-WK 6 TK/35
- WK 6 TK/35
Technical specifications
- Product type
Test terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Manufacturer part #
56.106.0553.0
- Content
50 pc(s)
- Type
WK 6 TK/35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
500 V
-40-55 °C
V0
FALSE
Screw connection
Screw connection
Sliding
Other
FALSE
1
2
0.5-10 mm²
0.5-6 mm²
Thermoplastic
32 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271786 Wieland Electric 56.106.0553.0 Test terminal Screws Grey 50 pc(s)
Description
Measurement disconnect terminal with screw connection for mounting on TS 35
Nominal cross-section 6 mm²
Installation width 8 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 6 mm²
Installation width 8 mm.
Colour Grey
