Wieland Electric 56.203.5055.6 Continuity Spring-loaded connector Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Number (Package size 100 pc(s))
Total (€ 0.97 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
THROUGH TERMINAL-WTP 2,5/4 D1/2 BL
- WTP 2,5/4 D1/2 BL
Technical specifications
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- Pins per row
3
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
56.203.5055.6
- Content
100 pc(s)
- Type
WTP 2,5/4 D1/2 BL
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Blue
800 V
-40-55 °C
V0
TRUE
Plug-in connection
3
0.2-4 mm²
0.2-4 mm²
0.2-4 mm²
0.2-4 mm²
Thermoplastic
32 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274399 Wieland Electric 56.203.5055.6 Continuity Spring-loaded connector Blue 100 pc(s)
Description

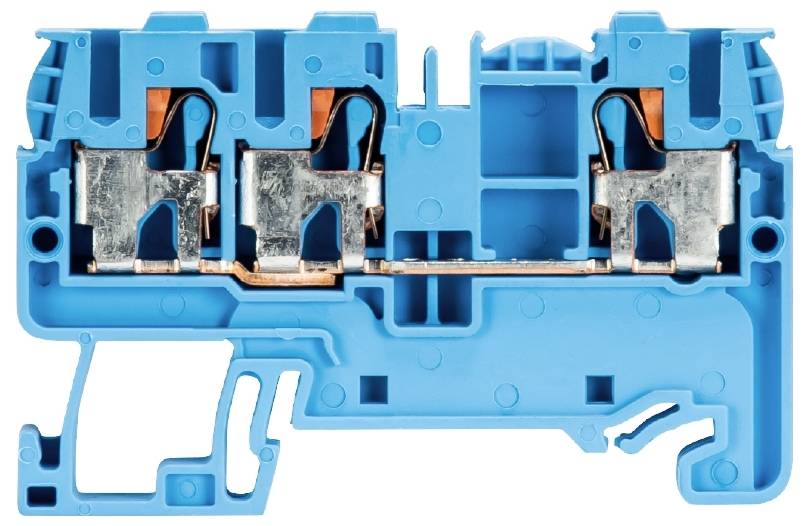

Through terminal with push-in connection for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
This text is machine translated.
