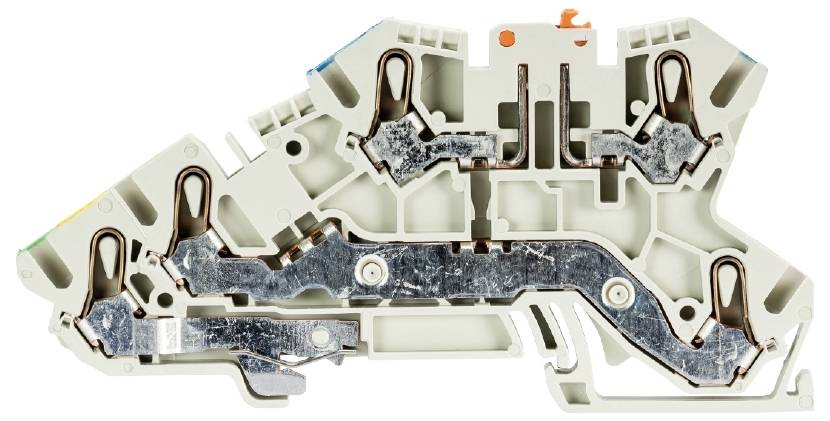

Wieland Electric 56.203.8653.0 Terminal Jack connector 50 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Connection
Jack connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
20 A
Number (Package size 50 pc(s))
Total (€ 4.45 / piece)
€ 222.69
plus VAT.
14-day return policy included
Technical specifications
- Product type
Terminal
- Connection
Jack connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Manufacturer part #
56.203.8653.0
- Content
50 pc(s)
- Type
WKIS 2,5 NTM-D-SL
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
400 V
V0
TRUE
Plug-in connection
Plug-in connection
3
Grey
TRUE
TRUE
TRUE
0.14-4 mm²
0.14-4 mm²
Thermoplastic
20 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274453 Wieland Electric 56.203.8653.0 Terminal Jack connector 50 pc(s)
Description
Installation terminal with plug connector for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
