Wieland Electric 56.399.0255.0 Continuity 42 mm Screws Grey 10 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
240 mm²
Nominal current - rounded value
415 A
Number (Package size 10 pc(s))
Total (€ 35.21 / piece)
€ 352.10
plus VAT.
14-day return policy included
Highlights & Details
THROUGH TERMINAL-RFK 1 / 240 FK S35/V0
- RFK 1 / 240 FK S35/V0
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
70 mm²
- Cross section (flexible) (max.)
240 mm²
- Clamp width
42 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
415 A
- Nominal current - rounded value
415 A
- Nominal voltage
1000 V
- Manufacturer part #
56.399.0255.0
- Content
10 pc(s)
- Type
RFK 1 / 240 FK S35/V0
- Width
42 mm
- Flammability rating
UL 94 V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
1000 V
-40-55 °C
V0
FALSE
Screw connection
Screw connection
1
2
70-240 mm²
70-240 mm²
Thermoplastic
415 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271768 Wieland Electric 56.399.0255.0 Continuity 42 mm Screws Grey 10 pc(s) Piece
Description

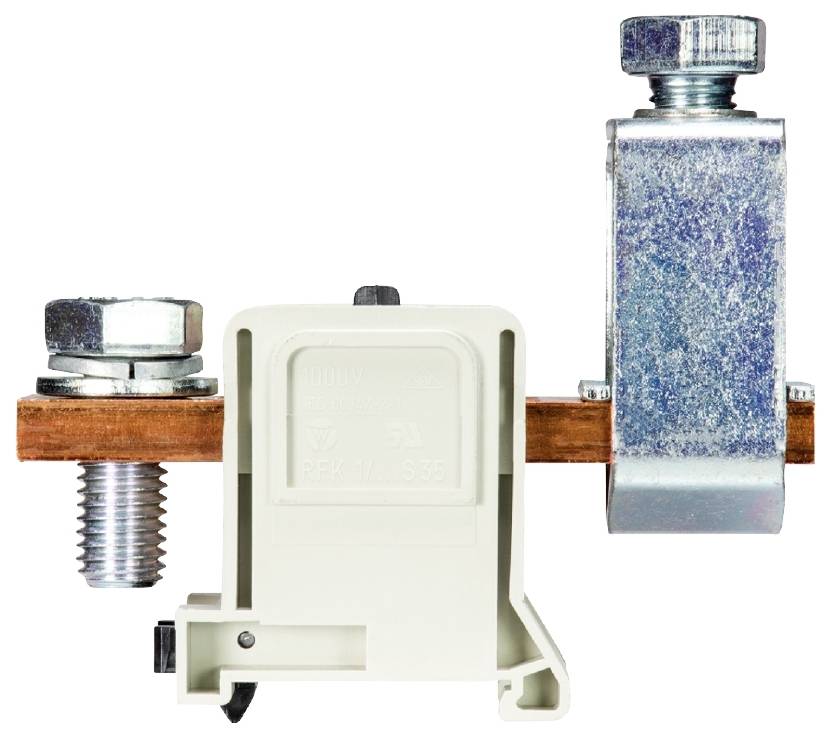

Through terminal block with screw terminals for mounting on TS 35/7.5 mm, nominal cross-section: 240 mm²
Installation width 42 mm.
Colour: grey
