Wieland Electric 56.702.7653.0 Industrial terminal block Spring-loaded connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Spring-loaded connector
Cross section (flexible) (max.)
1.5 mm²
Cross section (inflexible) (max.)
1.5 mm²
Nominal current - rounded value
17.5 A
Number (Package size 50 pc(s))
Total (€ 1.76 / piece)
€ 88.23
plus VAT.
14-day return policy included
Highlights & Details
Floor terminal WKF 1.5 E2/35
- WKF 1,5 E2/35
Technical specifications
- Product type
Industrial terminal block
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Grey
- Nominal current
17.5 A
- Nominal current - rounded value
17.5 A
- Nominal voltage
500 V
- Manufacturer part #
56.702.7653.0
- Content
50 pc(s)
- Type
WKF 1,5 E2/35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
500 V
V0
TRUE
Spring clamp connection
Spring clamp connection
2
2
FALSE
0.08-1.5 mm²
0.08-1.5 mm²
Thermoplastic
17.5 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274477 Wieland Electric 56.702.7653.0 Industrial terminal block Spring-loaded connector Grey 50 pc(s)
Description

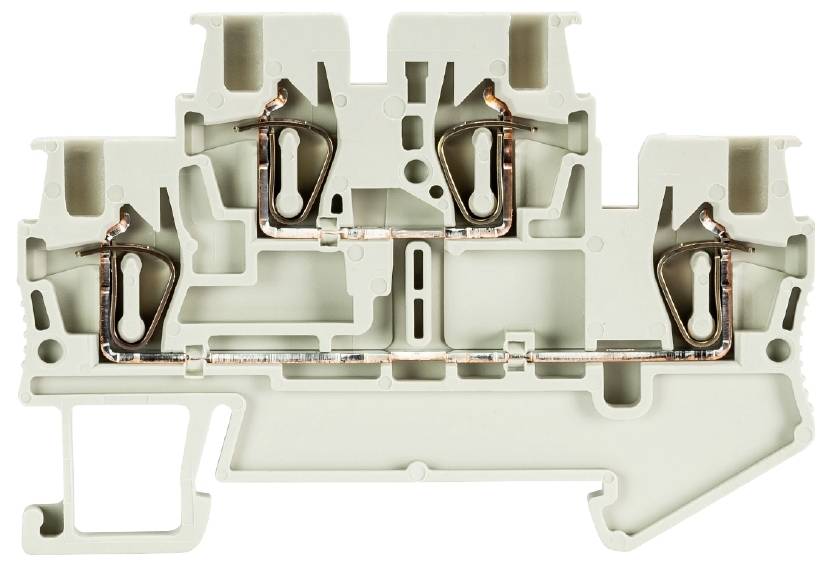

Floor terminal with spring clamp for mounting on TS 35
Nominal cross-section: 1.5 mm²
Installation width 4.15 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 1.5 mm²
Installation width 4.15 mm.
Colour: grey
This text is machine translated.
