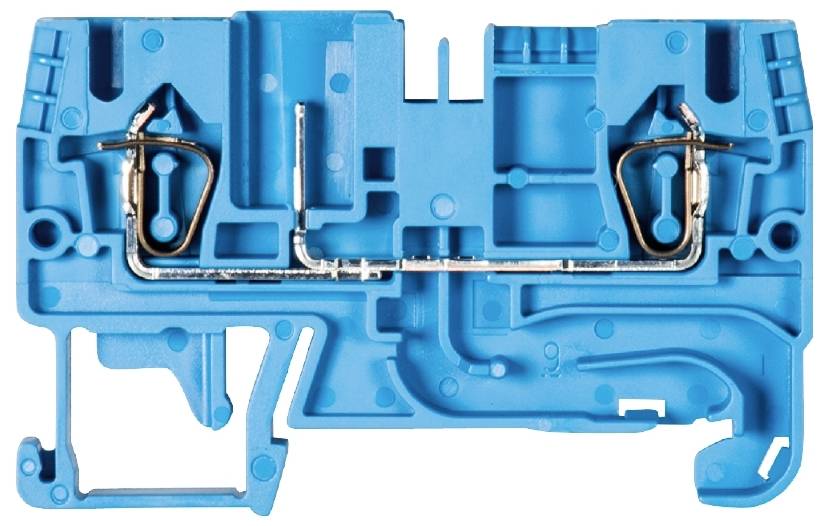

Wieland Electric 56.703.2355.6 Continuity Spring-loaded connector, Jack connector Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Jack connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Number (Package size 100 pc(s))
Total (€ 0.92 / piece)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
THROUGH TERMINAL-WKFN 2.5 F/P/F
- WKFN 2,5 F/P/F
Technical specifications
- Product type
Continuity
- Connection
Spring-loaded connector
Jack connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Manufacturer part #
56.703.2355.6
- Content
100 pc(s)
- Type
WKFN 2,5 F/P/F
- Dim
(W x H) 5 mm x 39 mm
- Width
5 mm
- Height
39 mm
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Blue
5 mm
39 mm
500 V
-40-55 °C
V0
TRUE
Spring clamp connection
Plug-in connection
1
3
0.2-4 mm²
0.13-4 mm²
0.13-4 mm²
Thermoplastic
32 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274670 Wieland Electric 56.703.2355.6 Continuity Spring-loaded connector, Jack connector Blue 100 pc(s)
Description
Through terminal block with spring connection for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour : blue
