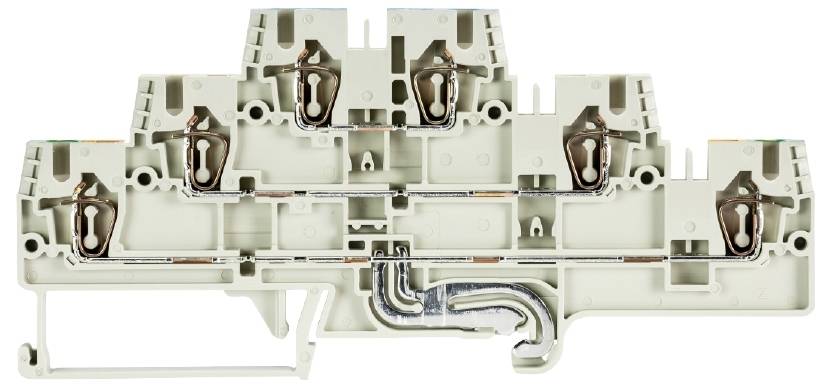

Wieland Electric 56.703.3255.0 Industrial terminal block Spring-loaded connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Spring-loaded connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Number (Package size 50 pc(s))
Total (€ 5.53 / piece)
€ 276.47
plus VAT.
14-day return policy included
Highlights & Details
FLOOR TERMINAL-WKFN 2.5 E3/N/D/SL/35
- WKFN 2,5 E3/N/D/SL/35
Technical specifications
- Product type
Industrial terminal block
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
3
- Pins per row
2
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
56.703.3255.0
- Content
50 pc(s)
- Type
WKFN 2,5 E3/N/D/SL/35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
500 V
V0
TRUE
Spring clamp connection
Spring clamp connection
3
2
FALSE
0.13-4 mm²
0.13-2.5 mm²
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274699 Wieland Electric 56.703.3255.0 Industrial terminal block Spring-loaded connector Grey 50 pc(s)
Description
Floor terminal with spring clamp for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: grey
This text is machine translated.
