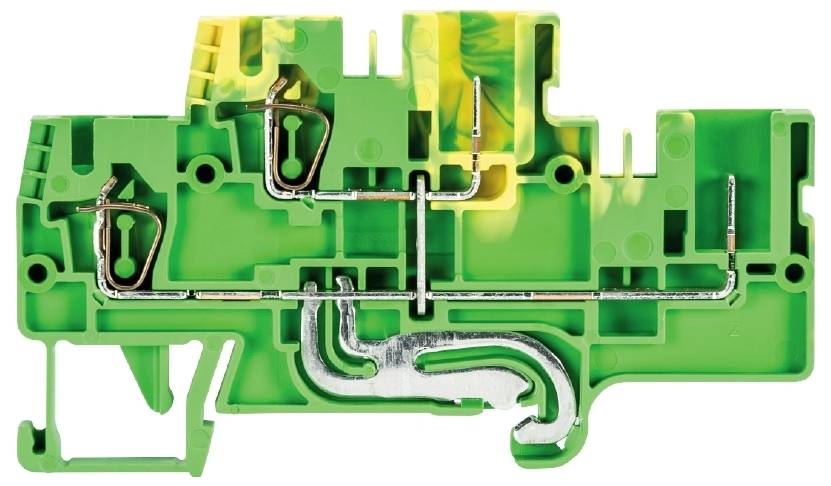

Wieland Electric 56.703.3655.0 PG terminal Spring-loaded connector, Jack connector Green-yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Spring-loaded connector
Jack connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Content
100 pc(s)
Number (Package size 100 pc(s))
Total (€ 4.08 / piece)
€ 407.56
plus VAT.
14-day return policy included
Technical specifications
- Product type
PG terminal
- Connection
Spring-loaded connector
Jack connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Green-yellow
- Manufacturer part #
56.703.3655.0
- Content
100 pc(s)
- Type
WKFN 2,5 E/F/P/SL
DIN rail (top hat rail) 35 mm
Green/yellow
-40-55 °C
V0
TRUE
Spring clamp connection
Plug-in connection
2
2
0.2-4 mm²
0.13-4 mm²
0.13-4 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271750 Wieland Electric 56.703.3655.0 PG terminal Spring-loaded connector, Jack connector Green-yellow 100 pc(s)
Description
Earth conductor terminal with spring terminal for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: Green/yellow
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: Green/yellow
This text is machine translated.
