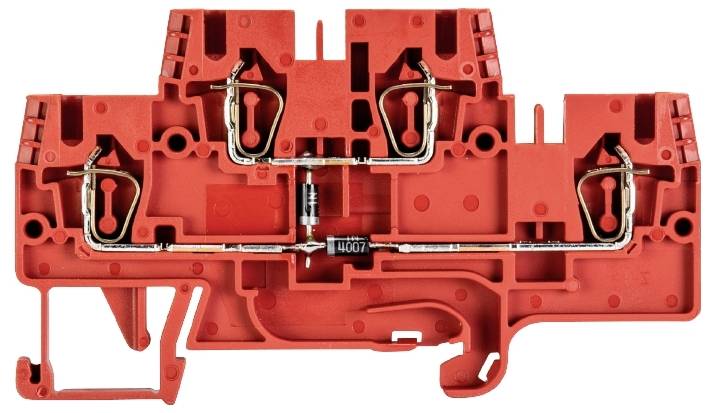

Wieland Electric 56.703.7955.5 Industrial terminal block Spring-loaded connector Red 100 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Spring-loaded connector
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
1 A
Number (Package size 100 pc(s))
Total (€ 7.35 / piece)
€ 735.29
plus VAT.
14-day return policy included
Technical specifications
- Product type
Industrial terminal block
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Red
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Nominal voltage
500 V
- Manufacturer part #
56.703.7955.5
- Content
100 pc(s)
- Type
WKFN 2,5 E/35/G2
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Red
500 V
-40-55 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
Diode
2
2
TRUE
0.14-4 mm²
0.14-2.5 mm²
Thermoplastic
1 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274436 Wieland Electric 56.703.7955.5 Industrial terminal block Spring-loaded connector Red 100 pc(s)
Description
Floor terminal with spring clamp for mounting on TS 35
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: Red
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour: Red
