Wieland Electric 56.704.0053.0 Continuity Spring-loaded connector Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Number (Package size 100 pc(s))
Total (€ 1.34 / piece)
€ 134.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
56.704.0053.0
- Content
100 pc(s)
- Type
WKF 4 / 35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
800 V
-40-55 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
0.13-6 mm²
0.13-4 mm²
Thermoplastic
32 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274686 Wieland Electric 56.704.0053.0 Continuity Spring-loaded connector Grey 100 pc(s)
Description

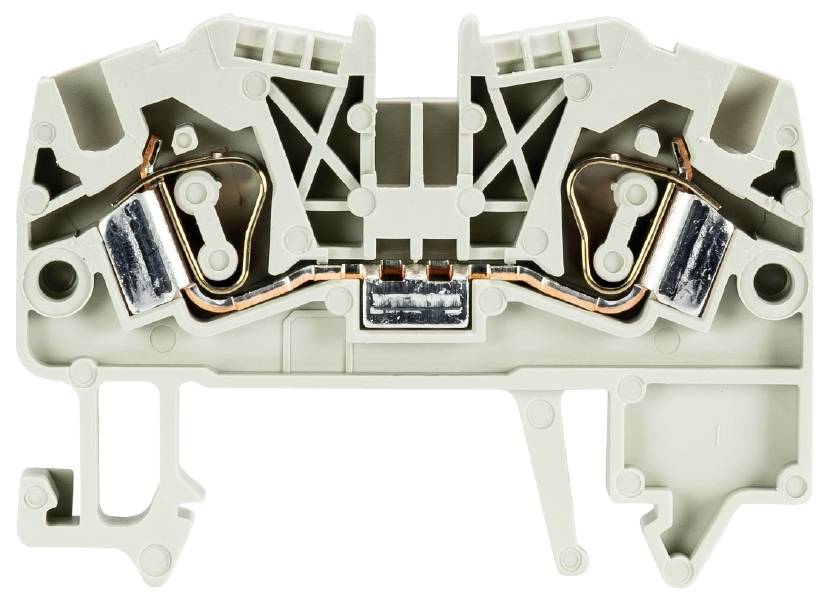

Through terminal block with spring connection for mounting on TS 35
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: grey
This text is machine translated.
