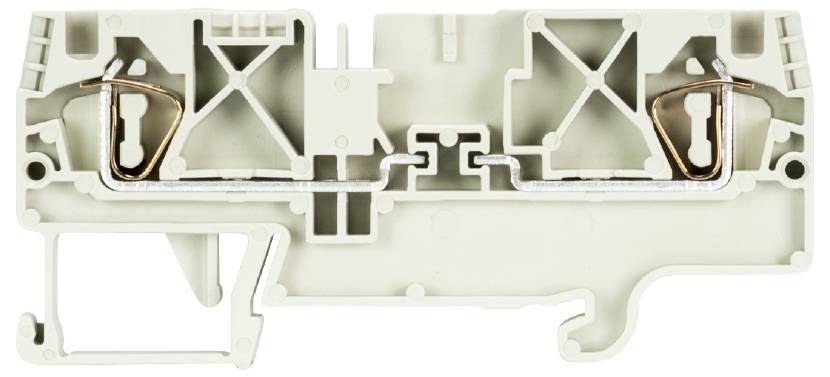

Wieland Electric 56.704.4055.0 N terminal Spring-loaded connector Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Spring-loaded connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Content
100 pc(s)
Number (Package size 100 pc(s))
Total (€ 2.85 / piece)
€ 284.87
plus VAT.
14-day return policy included
Technical specifications
- Product type
N terminal
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal voltage
500 V
- Manufacturer part #
56.704.4055.0
- Content
100 pc(s)
- Type
WKFN 4 TKG/35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
500 V
-40-55 °C
V0
TRUE
Spring clamp connection
Spring clamp connection
Pluggable
None
FALSE
1
2
0.13-6 mm²
0.13-4 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274719 Wieland Electric 56.704.4055.0 N terminal Spring-loaded connector Grey 100 pc(s)
Description
Separate basic terminal with spring-cage connection for mounting onto TS 35
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: grey
This text is machine translated.
