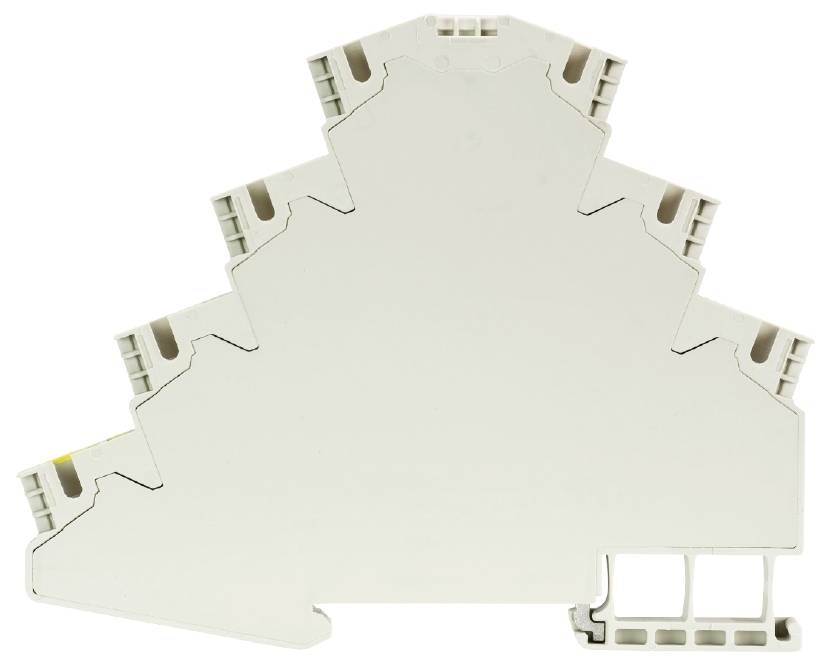

Wieland Electric 56.704.8453.0 Motor terminal Spring-loaded connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Motor terminal
Connection
Spring-loaded connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
28 A
Number (Package size 50 pc(s))
Total (€ 8.49 / piece)
€ 424.37
plus VAT.
14-day return policy included
Highlights & Details
MOTOR CONNECTING TERMINAL WKF 4 3D/SL/35
- WKF 4 3D/SL/35
Technical specifications
- Product type
Motor terminal
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.13 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
4
- Pins per row
2
- Factory colour
Grey
- Nominal current
28 A
- Nominal current - rounded value
28 A
- Nominal voltage
800 V
- Manufacturer part #
56.704.8453.0
- Content
50 pc(s)
- Type
WKF 4 3D/SL/35
- Dim
(W x H) 6 mm x 84 mm
- Width
6 mm
- Height
84 mm
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
6 mm
84 mm
800 V
V0
FALSE
Spring clamp connection
Spring clamp connection
4
2
FALSE
0.13-6 mm²
0.13-4 mm²
Thermoplastic
28 A
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274474 Wieland Electric 56.704.8453.0 Motor terminal Spring-loaded connector Grey 50 pc(s)
Description
Motor terminal with spring-loaded connection for mounting on TS 35, nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: grey
This text is machine translated.
Installation width 6 mm.
Colour: grey
This text is machine translated.
