Wieland Electric 56.710.0055.0 Continuity Spring-loaded connector Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
57 A
Number (Package size 50 pc(s))
Total (€ 2.27 / piece)
€ 113.44
plus VAT.
14-day return policy included
Highlights & Details
Through terminal-WKFN 10/35
- WKFN 10/35
Technical specifications
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Manufacturer part #
56.710.0055.0
- Content
50 pc(s)
- Type
WKFN 10/35
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
800 V
V0
TRUE
Spring clamp connection
Spring clamp connection
1
2
1.5-10 mm²
0.2-10 mm²
16-16 mm²
Thermoplastic
57 A
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274626 Wieland Electric 56.710.0055.0 Continuity Spring-loaded connector Grey 50 pc(s)
Description

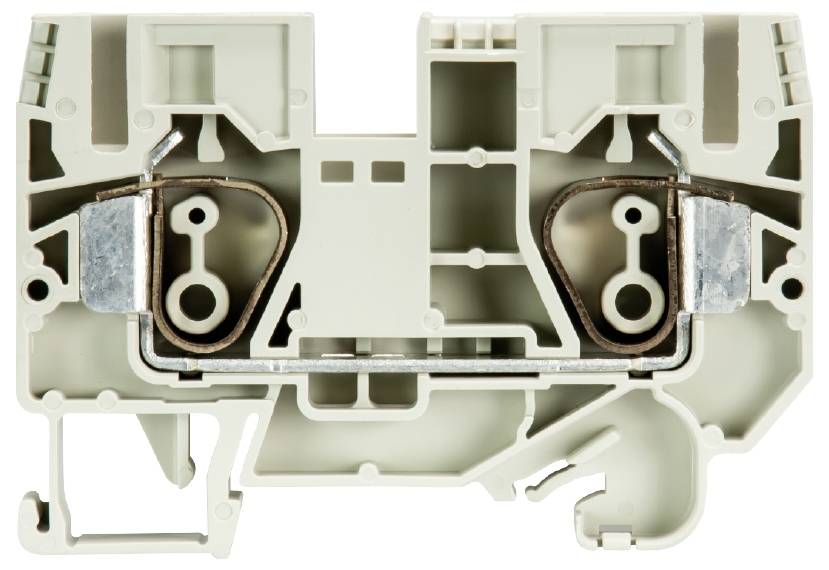

Through terminal block with spring-cage connection for mounting on TS 35 / TS 32
Nominal cross-section: 10 mm²
Installation width 10 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 10 mm²
Installation width 10 mm.
Colour: grey
This text is machine translated.
