Wieland Electric 56.710.9053.0 PG terminal Spring-loaded connector Green-yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Spring-loaded connector
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
50 pc(s)
Number (Package size 50 pc(s))
Total (€ 5.36 / piece)
€ 268.07
plus VAT.
14-day return policy included
Technical specifications
- Product type
PG terminal
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Green-yellow
- Manufacturer part #
56.710.9053.0
- Content
50 pc(s)
- Type
WKF 10SL/35
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Green/yellow
V0
FALSE
Spring clamp connection
Spring clamp connection
FALSE
1
2
2.5-10 mm²
2.5-10 mm²
Thermoplastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274681 Wieland Electric 56.710.9053.0 PG terminal Spring-loaded connector Green-yellow 50 pc(s)
Description

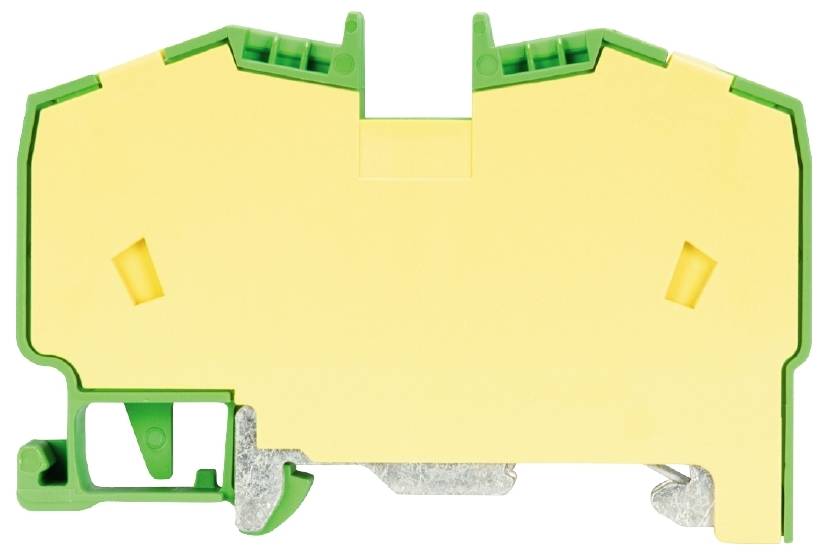

Earth conductor terminal with spring terminal for mounting on TS 35
Nominal cross-section: 10 mm²
Installation width 10 mm.
Colour: Green/yellow
This text is machine translated.
Nominal cross-section: 10 mm²
Installation width 10 mm.
Colour: Green/yellow
This text is machine translated.
