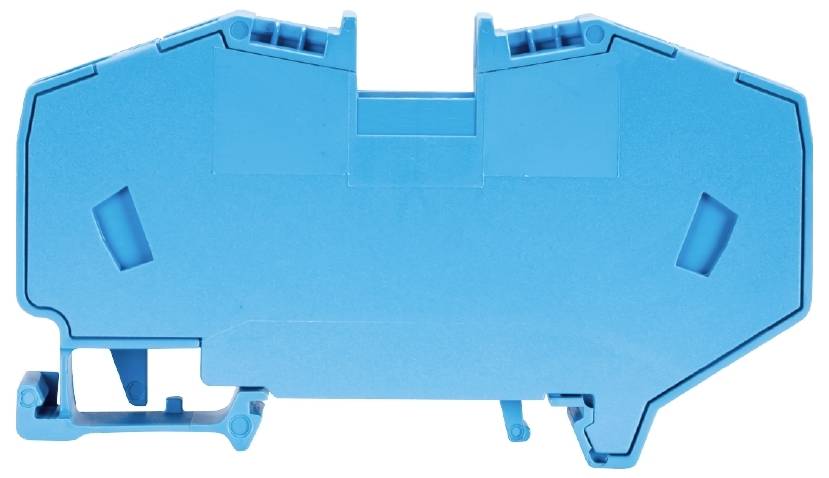

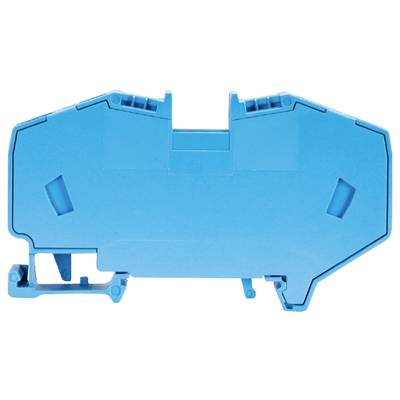

Wieland Electric 56.716.0053.6 Continuity 12 mm Spring-loaded connector Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Spring-loaded connector
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
10 mm²
Number (Package size 50 pc(s))
Total (€ 3.36 / piece)
€ 168.06
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Connection
Spring-loaded connector
- Cross section (flexible) (min.)
4 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
4 mm²
- Cross section (inflexible) (max.)
10 mm²
- Clamp width
12 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Blue
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
800 V
- Manufacturer part #
56.716.0053.6
- Content
50 pc(s)
- Type
WKF 16/35 BLAU
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Blue
800 V
V0
FALSE
Spring clamp connection
Spring clamp connection
1
2
4-10 mm²
4-16 mm²
16-16 mm²
Thermoplastic
76 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274705 Wieland Electric 56.716.0053.6 Continuity 12 mm Spring-loaded connector Blue 50 pc(s) Piece
Description
Through terminal block with spring connection for mounting on TS 35
Nominal cross-section: 16 mm²
Installation width 12 mm.
Colour : blue
This text is machine translated.
Nominal cross-section: 16 mm²
Installation width 12 mm.
Colour : blue
This text is machine translated.
