Wieland Electric 57.106.1155.0 Bolt terminal 11 mm Bolt fixings Grey 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Number (Package size 50 pc(s))
Total (€ 4.45 / piece)
€ 222.69
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Bolt terminal
- Features
+ bolt
- Connection
Bolt fixings
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (flexible) (max.)
6 mm²
- Clamp width
11 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
57.106.1155.0
- Content
50 pc(s)
- Type
WRT 6
- Flammability rating
V2
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
1000 V
-40-55 °C
V2
TRUE
Bolt connection
Bolt connection
1
2
1.5-6 mm²
1.5-6 mm²
Thermoplastic
41 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274777 Wieland Electric 57.106.1155.0 Bolt terminal 11 mm Bolt fixings Grey 50 pc(s) Piece
Description

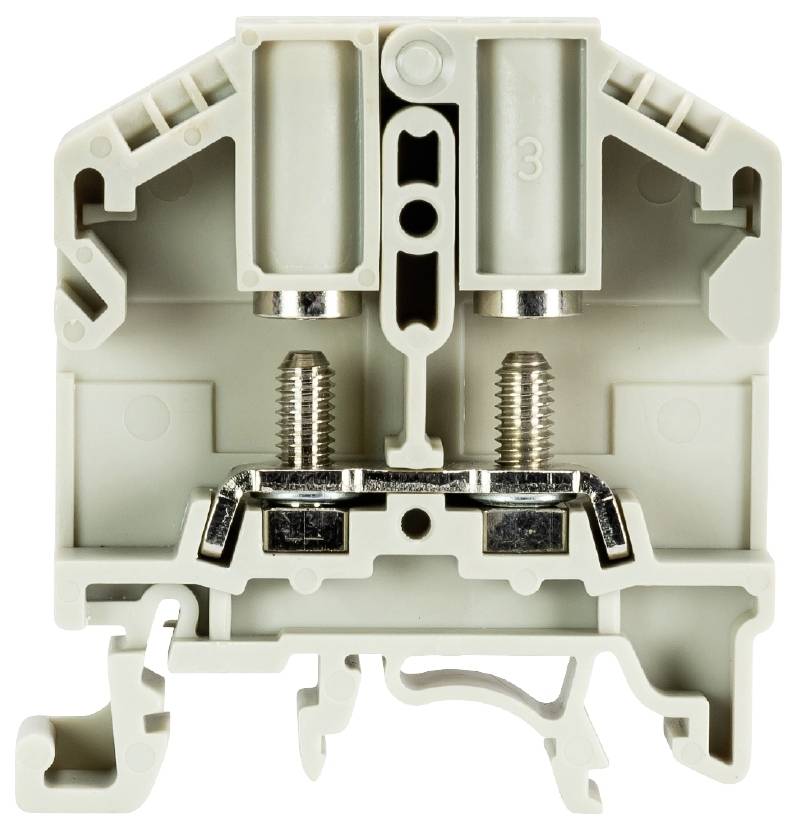

Bolt terminal with M4 bolt terminal for mounting on TS35
Nominal cross-section: 6 mm²
Installation width 11 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 6 mm²
Installation width 11 mm.
Colour: grey
This text is machine translated.
