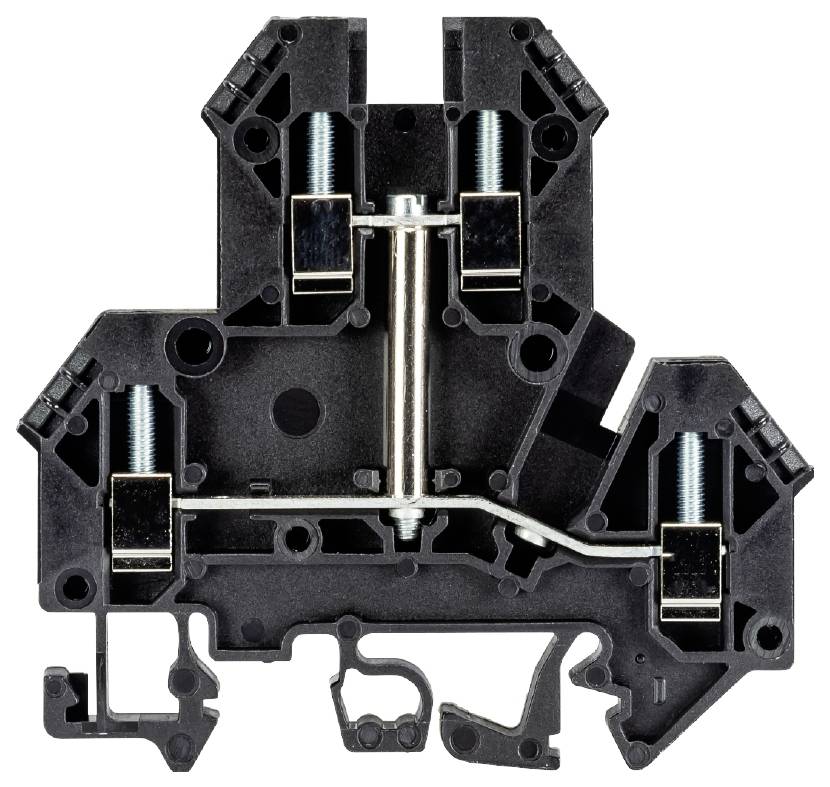

Wieland Electric 57.403.6955.1 Industrial terminal block Screws Black 100 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Screws
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
Number (Package size 100 pc(s))
Total (€ 3.82 / piece)
€ 382.35
plus VAT.
14-day return policy included
Highlights & Details
TIER CLAMP WKN2.5E / U VB BLK/V0
- WKN2,5E / U VB SW/V0
Technical specifications
- Product type
Industrial terminal block
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Black
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
500 V
- Manufacturer part #
57.403.6955.1
- Content
100 pc(s)
- Type
WKN2,5E / U VB SW/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Black
500 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
2
2
TRUE
0.5-4 mm²
0.5-2.5 mm²
Thermoplastic
24 A
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274786 Wieland Electric 57.403.6955.1 Industrial terminal block Screws Black 100 pc(s)
Description
Floor terminal with screw connection for mounting to TS 35/TS 32
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour, black
This text is machine translated.
Nominal cross-section: 2.5 mm²
Installation width 5 mm
Colour, black
This text is machine translated.
