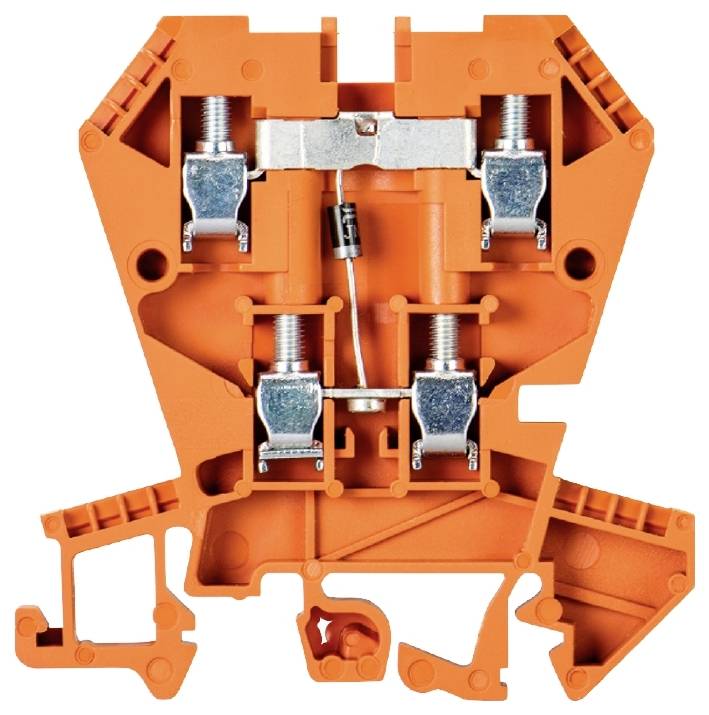

Wieland Electric 57.404.8155.9 Industrial terminal block Screws Orange 100 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
1 A
Number (Package size 100 pc(s))
Total (€ 5.67 / piece)
€ 567.23
plus VAT.
14-day return policy included
Highlights & Details
FLOOR TERMINAL-WK 4 E / U GU/V0
- WK 4 E / U GU/V0
Technical specifications
- Product type
Industrial terminal block
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Orange
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Nominal voltage
400 V
- Manufacturer part #
57.404.8155.9
- Content
100 pc(s)
- Type
WK 4 E / U GU/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Orange
400 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
Diode
2
2
TRUE
0.5-4 mm²
0.5-4 mm²
Thermoplastic
1 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274807 Wieland Electric 57.404.8155.9 Industrial terminal block Screws Orange 100 pc(s)
Description
Function terminal with diode circuit and screw connection for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour be orange
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour be orange
This text is machine translated.
