Wieland Electric 57.504.5055.0 Twin continuity Screws Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Twin continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Number (Package size 100 pc(s))
Total (€ 2.14 / piece)
€ 214.29
plus VAT.
14-day return policy included
Highlights & Details
Duo-through terminal-WK 4/D1/2U/V0
- WK 4/D1/2U/V0
Technical specifications
- Product type
Twin continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Manufacturer part #
57.504.5055.0
- Content
100 pc(s)
- Type
WK 4/D1/2U/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
800 V
-25-70 °C
V0
TRUE
Screw connection
Screw connection
1
3
0.5-6 mm²
0.5-4 mm²
Thermoplastic
32 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274710 Wieland Electric 57.504.5055.0 Twin continuity Screws Grey 100 pc(s)
Description

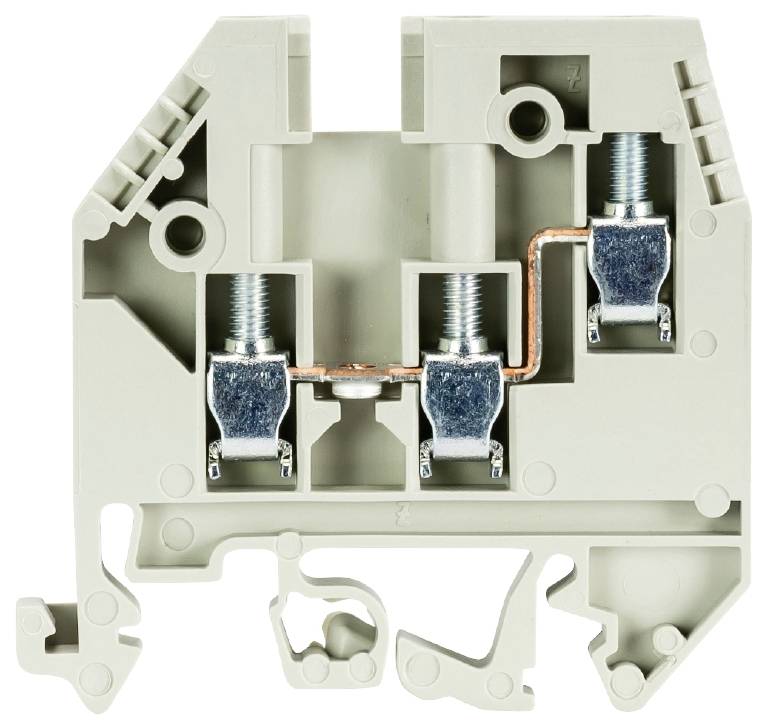

Duo feed-through terminal with screw connection for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
