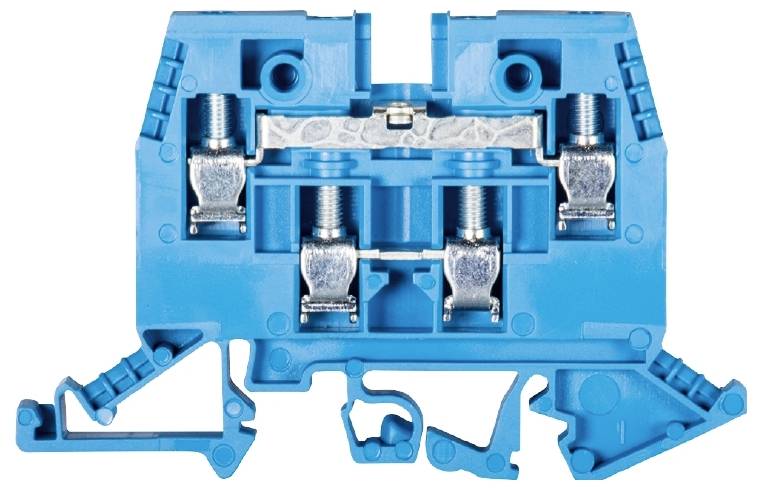

Wieland Electric 57.504.5255.6 Industrial terminal block Screws Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial terminal block
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
24 A
Number (Package size 100 pc(s))
Total (€ 2.93 / piece)
€ 293.28
plus VAT.
14-day return policy included
Highlights & Details
FLOOR TERMINAL-WK 4/D E U BL/V0
- WK 4/D E U BL/V0
Technical specifications
- Product type
Industrial terminal block
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
320 V
- Manufacturer part #
57.504.5255.6
- Content
100 pc(s)
- Type
WK 4/D E U BL/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Blue
320 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
2
2
FALSE
0.5-6 mm²
0.5-4 mm²
Thermoplastic
24 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274727 Wieland Electric 57.504.5255.6 Industrial terminal block Screws Blue 100 pc(s)
Description
Floor terminal with screw connection for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour blue.
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour blue.
This text is machine translated.
