Wieland Electric 57.510.1155.0 Continuity Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
57 A
Number (Package size 50 pc(s))
Total (€ 2.02 / piece)
€ 100.83
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
1 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
400 V
- Manufacturer part #
57.510.1155.0
- Content
50 pc(s)
- Type
WKI 10 / U/V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
400 V
-40-55 °C
V0
TRUE
Screw connection
Screw connection
1
2
1.5-10 mm²
1-10 mm²
16-16 mm²
Thermoplastic
57 A
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274788 Wieland Electric 57.510.1155.0 Continuity Screws Grey 50 pc(s)
Description

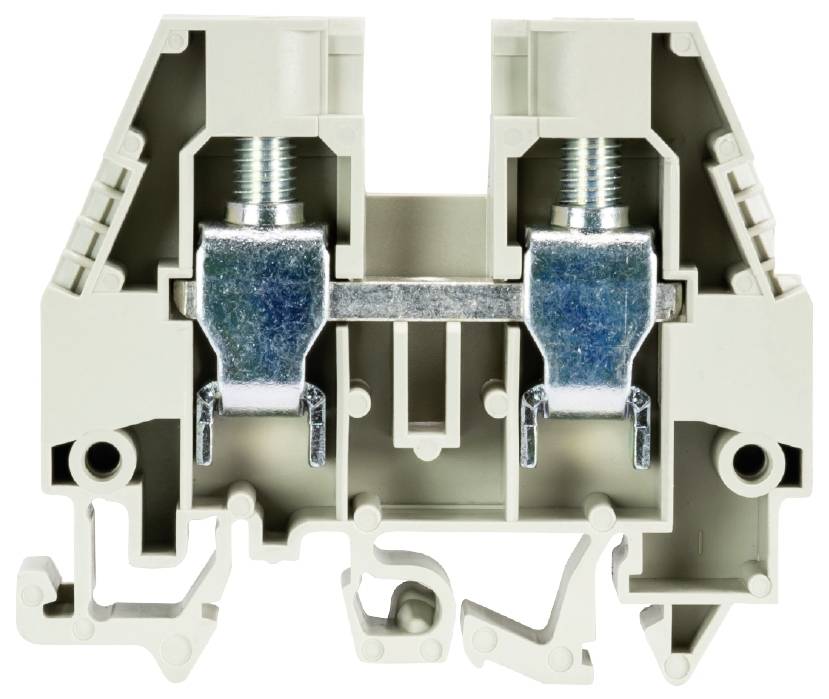

Through terminal block with screw terminals for mounting on TS 35/TS 32, nominal cross-section: 10 mm²
Installation width 10 mm.
Colour: grey
This text is machine translated.
Installation width 10 mm.
Colour: grey
This text is machine translated.
