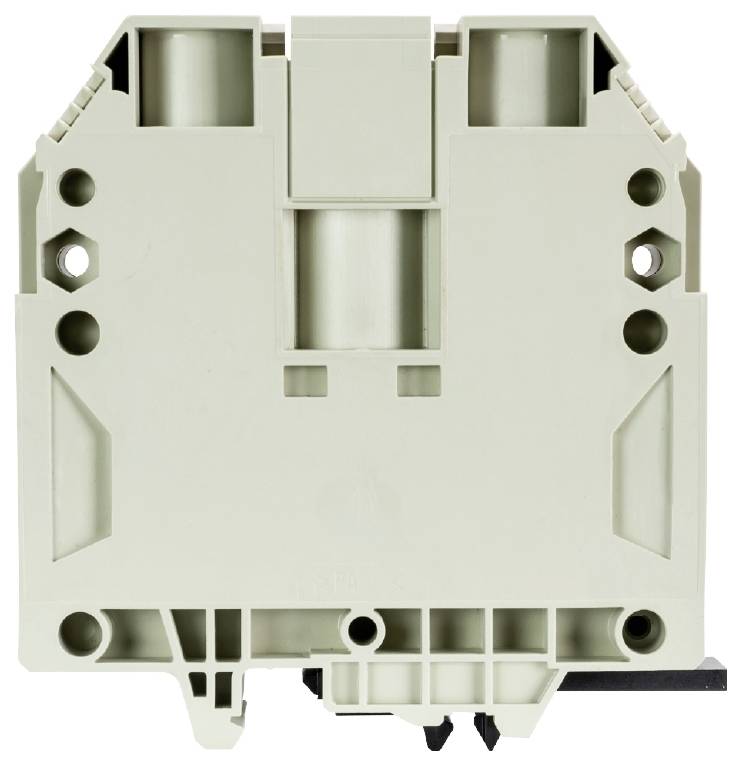

Wieland Electric 57.597.0155.0 Continuity 28 mm Screws Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
150 mm²
Nominal current - rounded value
309 A
Content
10 pc(s)
Number (Package size 10 pc(s))
Total (€ 29.33 / piece)
€ 293.28
plus VAT.
14-day return policy included
Highlights & Details
THROUGH TERMINAL-WKN 150 /U/V0
- WKN 150 /U/V0
Technical specifications
- Product type
Continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
35 mm²
- Cross section (flexible) (max.)
150 mm²
- Clamp width
28 mm
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
309 A
- Nominal current - rounded value
309 A
- Nominal voltage
1000 V
- Manufacturer part #
57.597.0155.0
- Content
10 pc(s)
- Type
WKN 150 /U/V0
- Width
28 mm
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
1000 V
-40-55 °C
V0
FALSE
Screw connection
Screw connection
1
2
35-150 mm²
35-185 mm²
Thermoplastic
309 A
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274844 Wieland Electric 57.597.0155.0 Continuity 28 mm Screws Grey 10 pc(s)
Description
Through terminal block with screw terminals for mounting on TS 35/TS 32, nominal cross-section: 150 mm²
Installation width 28 mm.
Colour: grey
This text is machine translated.
Installation width 28 mm.
Colour: grey
This text is machine translated.
