Wieland Electric 57.904.5655.0 Fuse terminal Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
6.3 A
Number (Package size 50 pc(s))
Total (€ 11.18 / piece)
€ 558.82
plus VAT.
14-day return policy included
Highlights & Details
FUSE CLIP-WK 4/THSI 5 LED 60U / V0
- WK 4/THSI 5 LED 60U /V0
Technical specifications
- Product type
Fuse terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Factory colour
Grey
- Nominal current
6.3 A
- Nominal current - rounded value
6.3 A
- Nominal voltage
60 V
- Manufacturer part #
57.904.5655.0
- Content
50 pc(s)
- Type
WK 4/THSI 5 LED 60U /V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
60 V
-40-55 °C
V0
FALSE
Screw connection
Screw connection
G-fuse 5x20 mm
Swivelling
LED
1
AC/DC
0.5-6 mm²
0.5-4 mm²
Thermoplastic
6.3 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274467 Wieland Electric 57.904.5655.0 Fuse terminal Screws Grey 50 pc(s)
Description

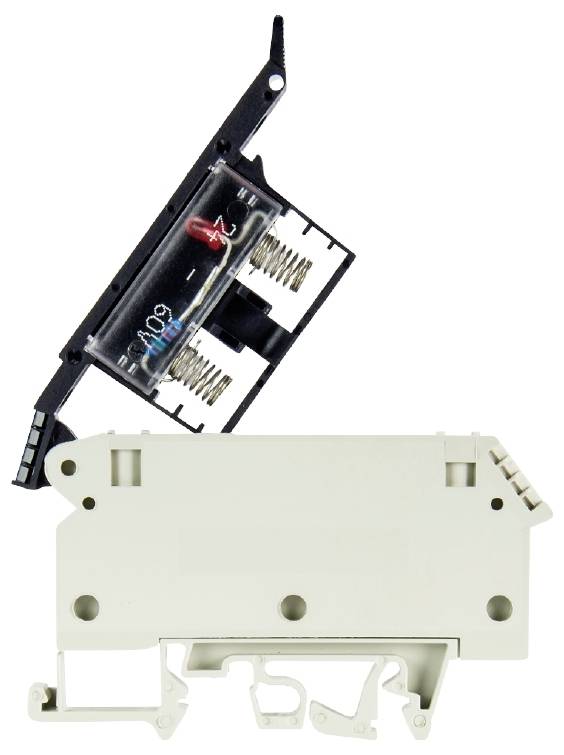

Fuse terminal with screw terminals for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
