Wieland Electric 57.904.6355.0 Fuse terminal Screws Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse terminal
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
10 A
Number (Package size 50 pc(s))
Total (€ 8.49 / piece)
€ 424.37
plus VAT.
14-day return policy included
Technical specifications
- Product type
Fuse terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
800 V
- Manufacturer part #
57.904.6355.0
- Content
50 pc(s)
- Type
WK 4/THSI6,3 U /V0
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
800 V
-40-55 °C
V0
FALSE
Screw connection
Screw connection
G-fuse 6.3x32 mm
Swivelling
1
0.5-6 mm²
0.5-4 mm²
Thermoplastic
10 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274493 Wieland Electric 57.904.6355.0 Fuse terminal Screws Grey 50 pc(s)
Description

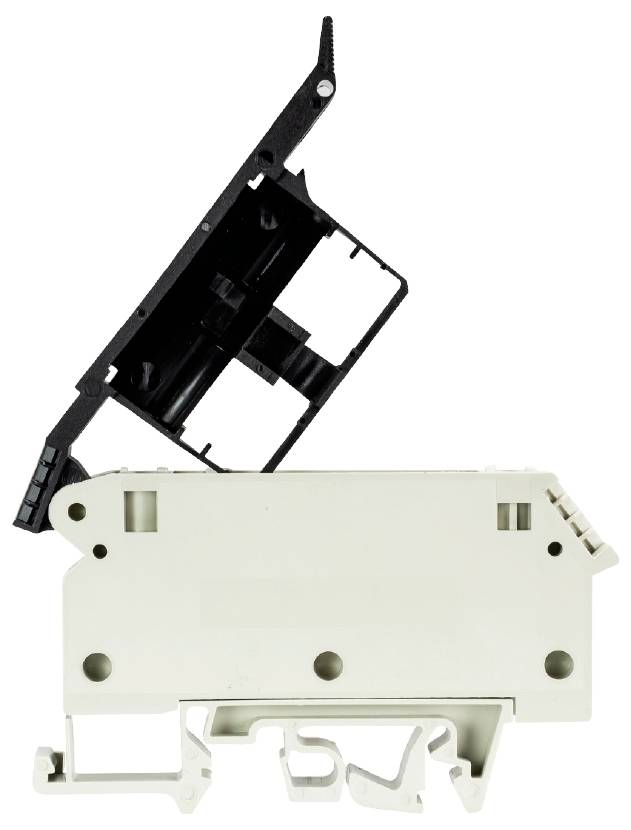

Fuse terminal with screw terminals for mounting on TS 35 and TS 32
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
This text is machine translated.
Nominal cross-section 4 mm²
Installation width 6 mm.
Colour Grey
