Wieland Electric 58.504.5055.6 Continuity Screws Blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
32 A
Number (Package size 100 pc(s))
Total (€ 1.72 / piece)
€ 172.26
plus VAT.
14-day return policy included
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
1
- Pins per row
3
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Manufacturer part #
58.504.5055.6
- Content
100 pc(s)
- Type
WT 4 D1/2 BL
- Dim
(W x H) 6 mm x 49 mm
- Width
6 mm
- Height
49 mm
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Blue
6 mm
49 mm
500 V
-25-70 °C
V0
TRUE
Screw connection
Screw connection
1
3
0.14-6 mm²
0.5-4 mm²
0.14-6 mm²
Thermoplastic
32 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274751 Wieland Electric 58.504.5055.6 Continuity Screws Blue 100 pc(s)
Description

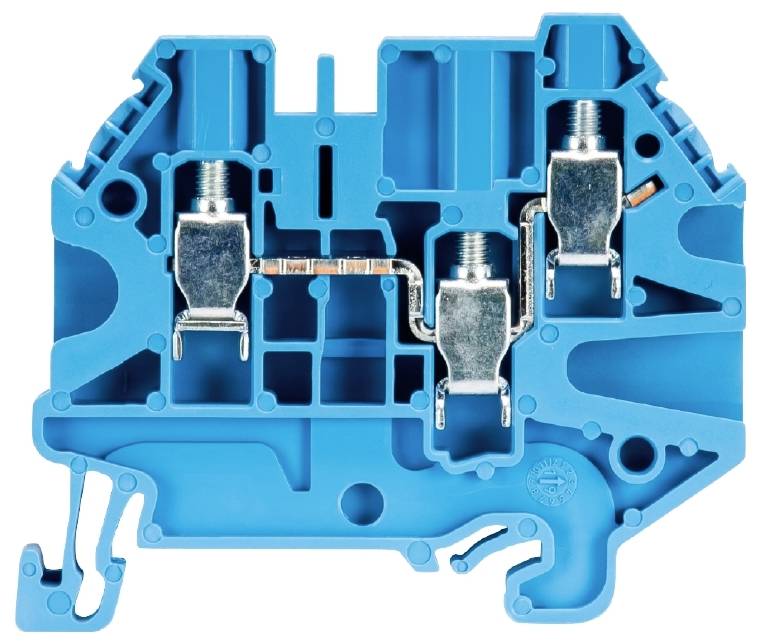

Through terminal block with screw terminals for mounting on TS 35
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour : blue
This text is machine translated.
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour : blue
This text is machine translated.
