Wieland Electric 58.504.9255.0 PG terminal Screws Green-yellow 100 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Screws
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Content
100 pc(s)
Number (Package size 100 pc(s))
Total (€ 6.76 / piece)
€ 676.47
plus VAT.
14-day return policy included
Technical specifications
- Product type
PG terminal
- Connection
Screws
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Cross section (inflexible) (max.)
6 mm²
- No. of rows
2
- Pins per row
2
- Factory colour
Green-yellow
- Manufacturer part #
58.504.9255.0
- Content
100 pc(s)
- Type
WT 4 E PE
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Green/yellow
-25-70 °C
V0
TRUE
Screw connection
Screw connection
2
2
0.14-6 mm²
0.5-4 mm²
0.14-6 mm²
Thermoplastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274808 Wieland Electric 58.504.9255.0 PG terminal Screws Green-yellow 100 pc(s)
Description

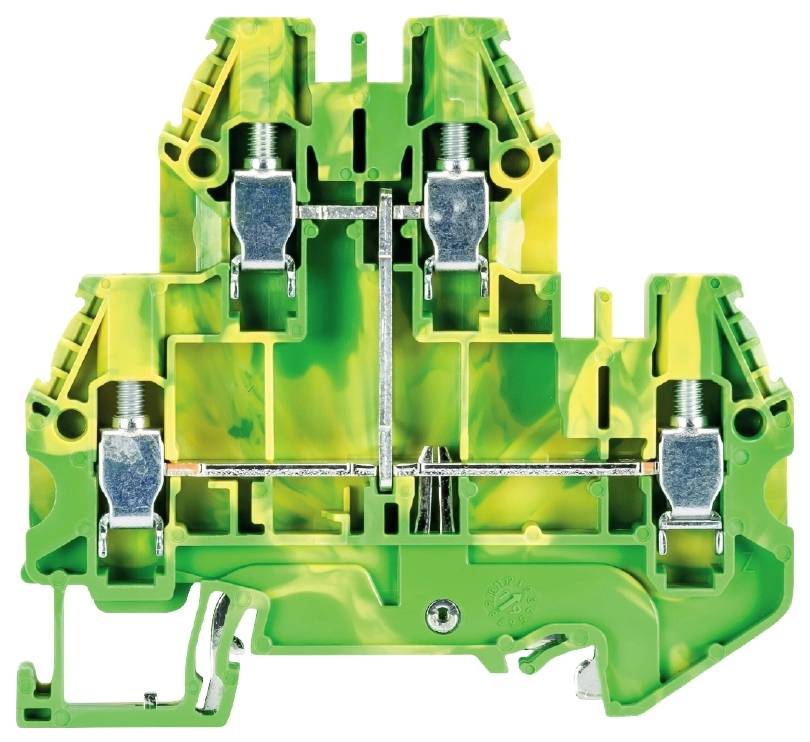

Earth conductor terminal with screw terminal for mounting to TS 35
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: Green/yellow
This text is machine translated.
Nominal cross-section: 4 mm²
Installation width 6 mm.
Colour: Green/yellow
This text is machine translated.
