Wieland Electric 58.506.0055.0 Continuity Screws Grey 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
41 A
Number (Package size 100 pc(s))
Total (€ 1.47 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Through terminal-WT 6
- WT 6
Technical specifications
- Product type
Continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
10 mm²
- No. of rows
1
- Pins per row
2
- Factory colour
Grey
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
1000 V
- Manufacturer part #
58.506.0055.0
- Content
100 pc(s)
- Type
WT 6
- Dim
(W x H) 8 mm x 48 mm
- Width
8 mm
- Height
48 mm
- Insulation material
Thermoplastic
DIN rail (top hat rail)/G-rail TH35/G32
Grey
8 mm
48 mm
1000 V
-25-70 °C
V0
TRUE
Screw connection
Screw connection
1
2
0.2-10 mm²
0.5-6 mm²
0.2-10 mm²
Thermoplastic
41 A
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274815 Wieland Electric 58.506.0055.0 Continuity Screws Grey 100 pc(s)
Description

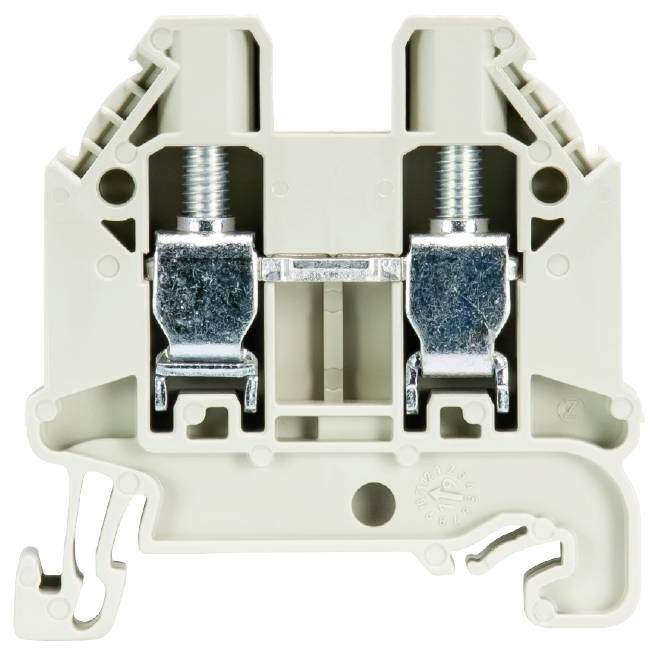

Through terminal block with screw terminals for mounting on TS 35
Nominal cross-section: 6 mm²
Installation width 8 mm.
Colour: grey
This text is machine translated.
Nominal cross-section: 6 mm²
Installation width 8 mm.
Colour: grey
This text is machine translated.
