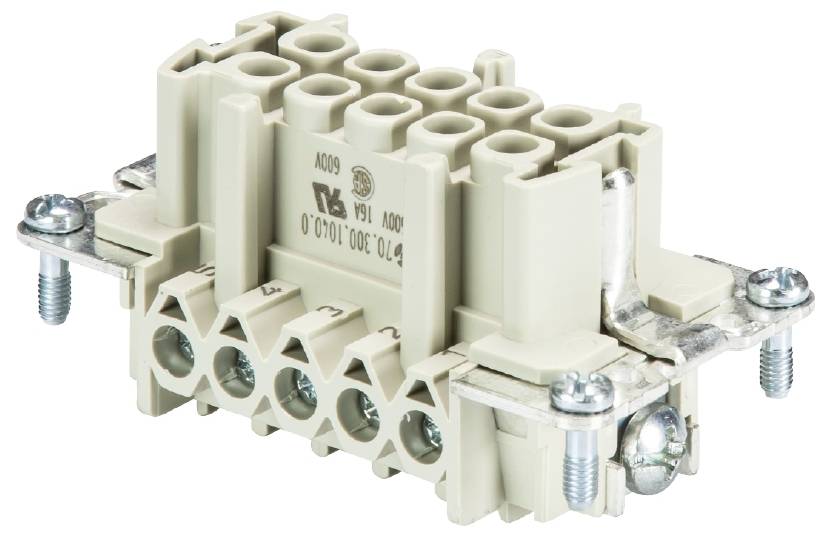

Wieland Electric 70.300.1002.0 Socket inset Total number of pins 10 10 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Screws
Number of pins
10
Total no. of pins
10
Test current
16 A
Number (Package size 10 pc(s))
Total (€ 11.76 / piece)
€ 117.64
plus VAT.
14-day return policy included
Technical specifications
- Product type
Socket inset
- Number of pins
10
- Total no. of pins
10
- Connection
Screws
- Test current
16 A
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
34 mm
32 mm
TRUE
10
Bus
-40-120 °C
-40-120 °C
V0
6 kV
Screw connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
16 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289196 Wieland Electric 70.300.1002.0 Socket inset Total number of pins 10 10 pc(s)
Description
Revos basic female insert
10-pin
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
10-pin
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
