Wieland Electric 70.310.1640.0 Plug inset Total number of pins 16 10 pc(s)
EAN:
Part number:
Item no:
Product type
Plug inset
Connection
Screws
Number of pins
16
Total no. of pins
16
Test current
16 A
Number (Package size 10 pc(s))
Total (€ 13.02 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Plug inset
- Number of pins
16
- Total no. of pins
16
- Connection
Screws
- Test current
16 A
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
34 mm
32 mm
TRUE
16
Pin
-40-120 °C
-40-120 °C
V0
6 kV
Screw connection
Tin
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
16 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274847 Wieland Electric 70.310.1640.0 Plug inset Total number of pins 16 10 pc(s)

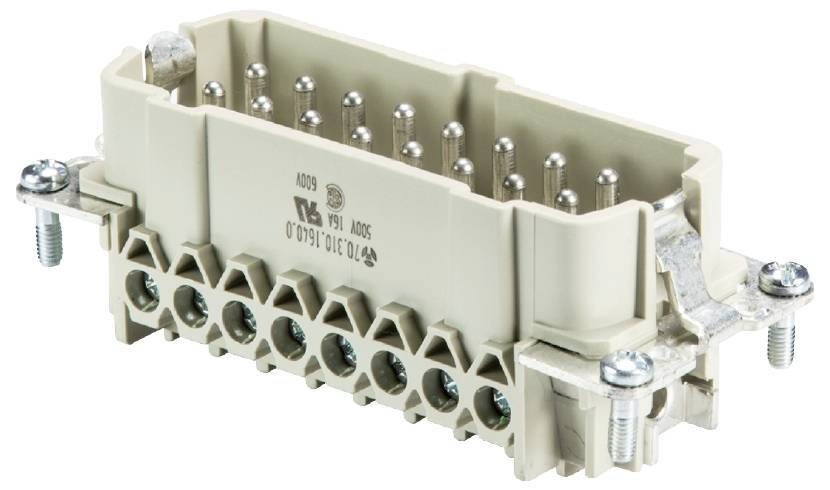

Description
Revos basic plug insert
Screw design
16-pin
Rated current 16A
Rated voltage: 500V
With tin-plated contacts
This text is machine translated.
Screw design
16-pin
Rated current 16A
Rated voltage: 500V
With tin-plated contacts
This text is machine translated.
