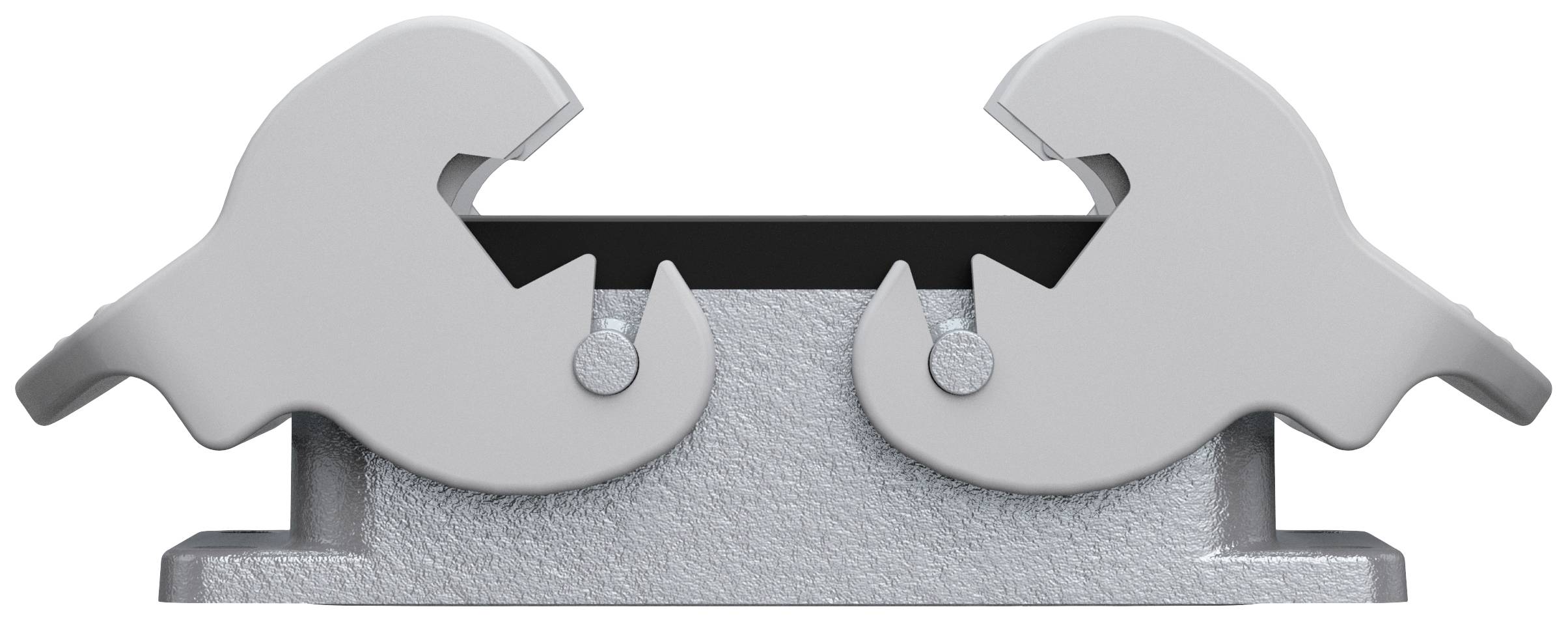

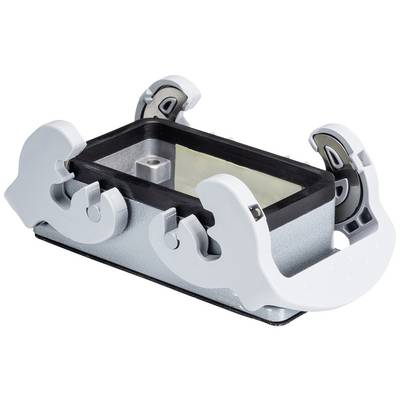

Wieland Electric 70.320.1028.0 Wieland Industrial Connector, 10 Pin + PE Housing base
EAN:
Part number:
Item no:
Datasheet (PDF)
46 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€
Technical specifications
- Series
BAS
- Features
+ two-hand locking mechanism
Transverse brace
UV-resistant
- Case material
Aluminium
- Factory colour
Grey
IP54
- Content
1 pc(s)
- Leading contact (PE)
No
- Manufacturer part #
70.320.1028.0
- Type
Wieland
- Type
Housing base
- Test current
-
- Rated voltage
-
- Pins
-
- Connection
-
- Voltage
500 V AC
- Max. temperature
+120 °C
- Min. temperature
-40 °C
- Product type
Enclosure bottom
Documents & Downloads
Datasheet
Datasheet 744182 Wieland Electric 70.320.1028.0 Wieland Industrial Connector, 10 Pin + PE Housing base
Description
These connectos are specially designed for use in particularly rough working conditions. Intended mainly for machine and plant engineering applications, MSR technology, stage/lighting systems and the automotive industry. The connector is made with an aluminium housing and a contact insert (male or female).
Scope of delivery
- The housing is supplied without the contact inserts.
Hints
The contact inserts can be screwed into the top/bottom part of the housing as desired. When connected, the 6 / 10 / 16 / 24 pin versions meet protection class IP 55; the 3-pin version meets protection class IP 54.
