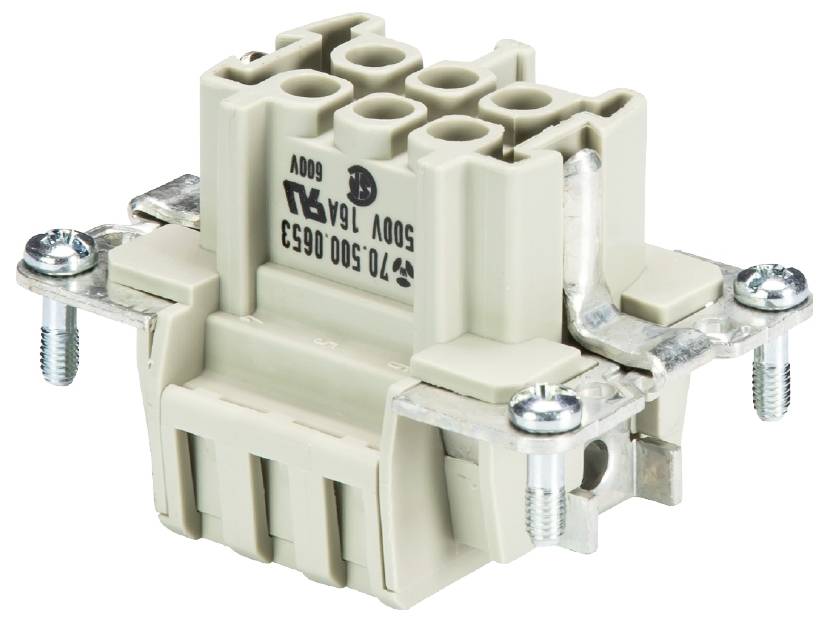

Wieland Electric 70.500.0653.0 Socket inset Total number of pins 6 10 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Spring-loaded connector
Number of pins
6
Total no. of pins
6
Test current
16 A
Number (Package size 10 pc(s))
Total (€ 9.66 / piece)
€ 96.63
plus VAT.
14-day return policy included
Technical specifications
- Product type
Socket inset
- Number of pins
6
- Total no. of pins
6
- Connection
Spring-loaded connector
- Test current
16 A
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
34 mm
33 mm
TRUE
6
Bus
-40-120 °C
-40-120 °C
V2
6 kV
Spring clamp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274894 Wieland Electric 70.500.0653.0 Socket inset Total number of pins 6 10 pc(s)
Description
Revos basic female insert
Spring load execution
6-pole
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
Spring load execution
6-pole
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
