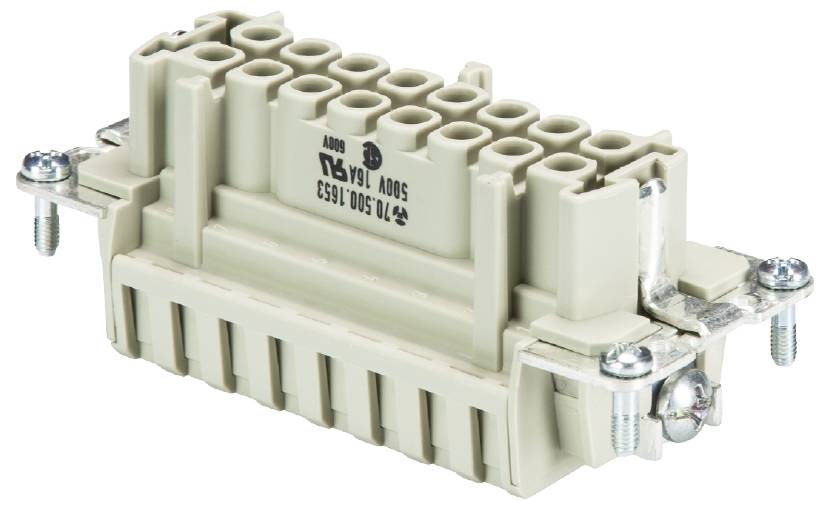

Wieland Electric 70.500.1653.0 Socket inset Total number of pins 16 10 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Spring-loaded connector
Number of pins
16
Total no. of pins
16
Test current
16 A
Number (Package size 10 pc(s))
Total (€ 13.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Socket inset
- Number of pins
16
- Total no. of pins
16
- Connection
Spring-loaded connector
- Test current
16 A
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
2.5 mm²
34 mm
33 mm
TRUE
16
Bus
-40-120 °C
-40-120 °C
V2
6 kV
Spring clamp connection
Silver
3
0.5-2.5 mm²
0.5-2.5 mm²
0.5-2.5 mm²
TRUE
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274897 Wieland Electric 70.500.1653.0 Socket inset Total number of pins 16 10 pc(s)
Description
Revos basic female insert
Spring load execution
16-pin
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
Spring load execution
16-pin
Rated current 16A
Rated voltage: 500V
With silver-plated contacts
This text is machine translated.
