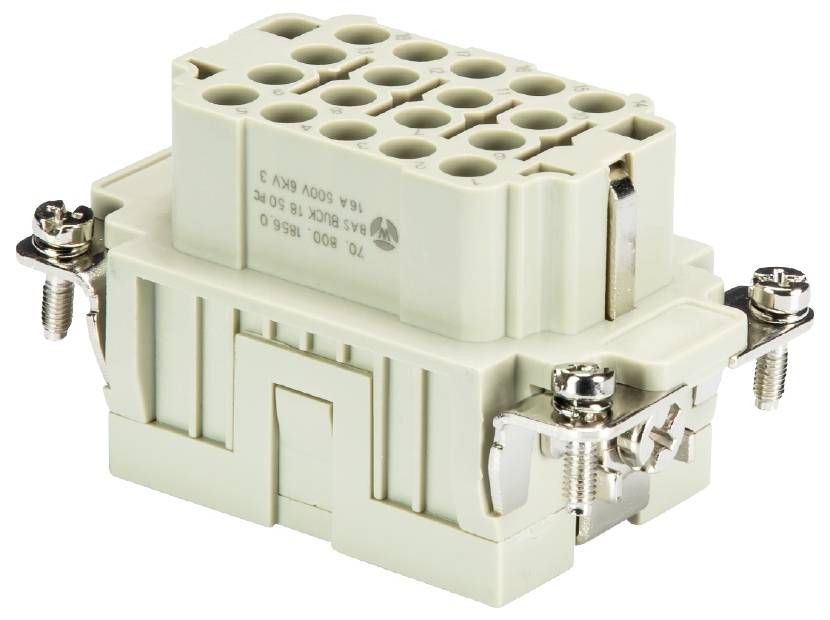

Wieland Electric 70.800.1856.0 Socket inset Total number of pins 18 5 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Number of pins
18
Total no. of pins
18
Test current
16 A
Number (Package size 5 pc(s))
Total (€ 12.10 / piece)
€ 60.50
plus VAT.
14-day return policy included
Technical specifications
- Product type
Socket inset
- Number of pins
18
- Total no. of pins
18
- Connection
Crimp
- Test current
16 A
- Core cross section (min.)
2.5 mm²
- Core cross section (max.)
0.5 mm²
36.2 mm
34 mm
FALSE
18
Bus
-40-120 °C
-40-120 °C
V0
6 kV
Crimp connection
Other
3
TRUE
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3289209 Wieland Electric 70.800.1856.0 Socket inset Total number of pins 18 5 pc(s)
Description
Revos basic female insert
18-pin
Polycarbonate insert
Rated current 16A
Rated voltage: 500V
Gold-plated or silver-plated contacts
This text is machine translated.
18-pin
Polycarbonate insert
Rated current 16A
Rated voltage: 500V
Gold-plated or silver-plated contacts
