Wieland Electric 71.341.2435.0 Enclosure bottom Cable gland Total number of pins: 24 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Enclosure bottom
Connector type
Cable gland
Total no. of pins
24
Content
1 pc(s)
Type
BAS GUT GS 24 M25 A0
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
14-day return policy included
Technical specifications
- Type
BAS GUT GS 24 M25 A0
- Product type
Enclosure bottom
- Connector type
Cable gland
- Total no. of pins
24
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
120 °C
- Min. temperature
-40 °C
- Case material
Aluminium
- Manufacturer part #
71.341.2435.0
- Number of pins
24
- Width
57 mm
- Height
57 mm
IP54
- Packaging type
Piece
57
TRUE
57 mm
TRUE
Grey
Single locking lever
TRUE
TRUE
Aluminium
Powder coating
-40-120 °C
Other
Housing extension
IP54
Sideways
Cover
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272164 Wieland Electric 71.341.2435.0 Enclosure bottom Cable gland Total number of pins: 24 1 pc(s) Piece
Description

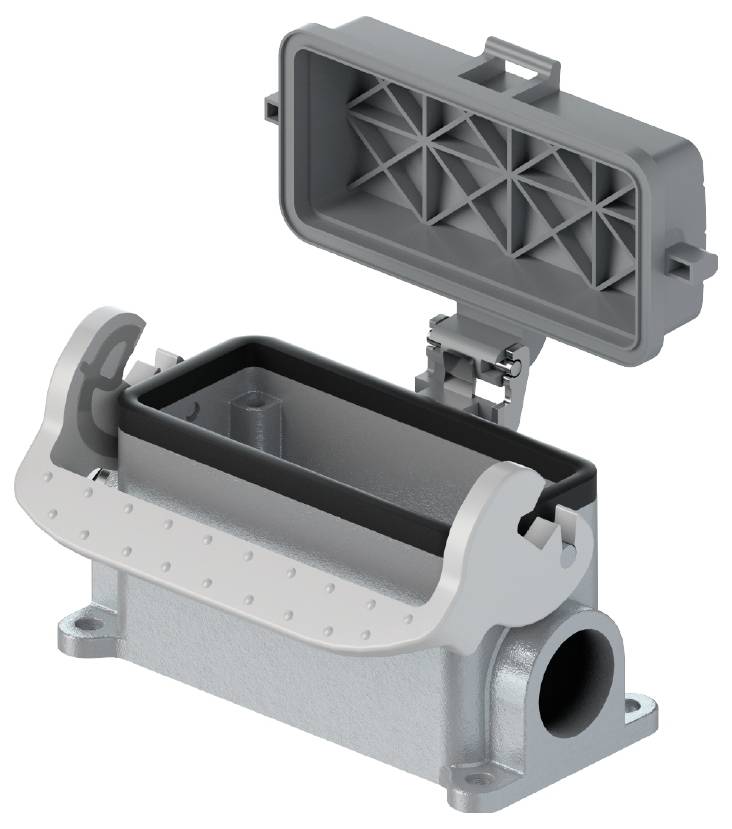

Revos basic aluminum lower section
With one-hand locking with protective cover and screwed cable gland M25 left (IP54)
Low profile, 24-pin
This text is machine translated.
With one-hand locking with protective cover and screwed cable gland M25 left (IP54)
Low profile, 24-pin
