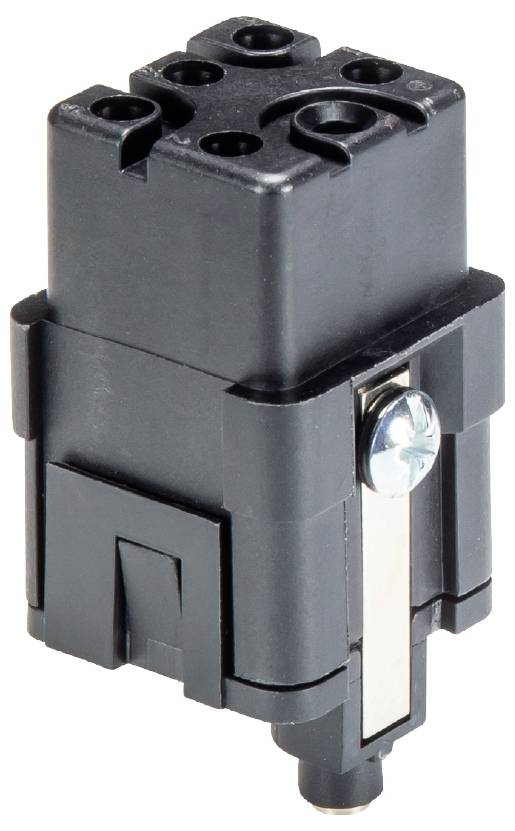

Wieland Electric 73.700.0553.0 Socket inset Total number of pins 5 10 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Crimp
Number of pins
5
Total no. of pins
5
Test current
16 A
Number (Package size 10 pc(s))
Total (€ 5.71 / piece)
€ 57.13
plus VAT.
14-day return policy included
Technical specifications
- Product type
Socket inset
- Number of pins
5
- Total no. of pins
5
- Connection
Crimp
- Test current
16 A
- Core cross section (min.)
2.5 mm²
- Core cross section (max.)
0.5 mm²
21 mm
40.4 mm
FALSE
5
Bus
-40-120 °C
-40-120 °C
V0
4 kV
Crimp connection
Other
3
TRUE
TRUE
16 A
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274960 Wieland Electric 73.700.0553.0 Socket inset Total number of pins 5 10 pc(s)
Description
Revos MINI socket insert
5-pin
Crimp connection
Rated current 16 A
Rated voltage: 400V
With silver-plated contacts
This text is machine translated.
5-pin
Crimp connection
Rated current 16 A
Rated voltage: 400V
With silver-plated contacts
