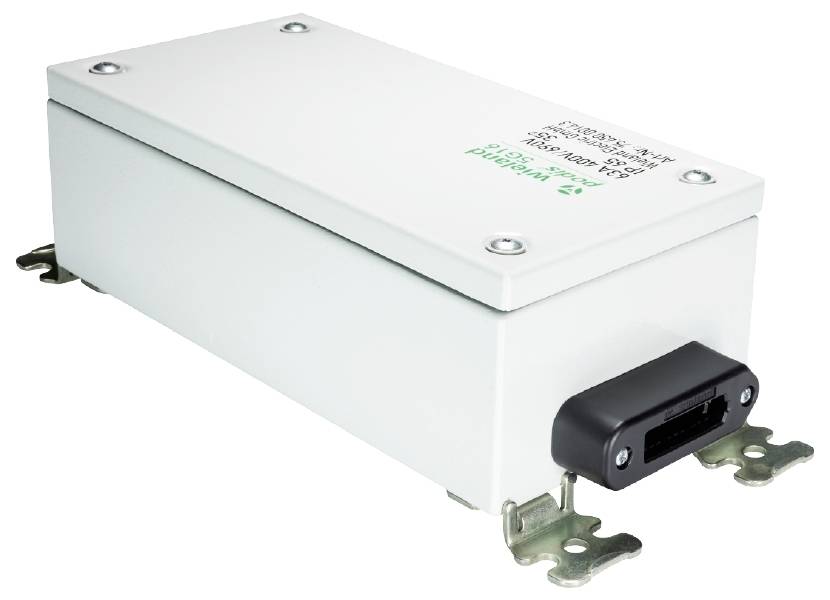

Wieland Electric 75.450.0014.3 FCS 16 5 SA SAM50G Feeder module Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder module
Width
145 mm
Height
100 mm
Factory colour
Grey
Dim
(W x H) 145 mm x 100 mm
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Technical specifications
- Product type
Feeder module
- Factory colour
Grey
- Width
145 mm
- Height
100 mm
- Dim
(W x H) 145 mm x 100 mm
- Content
1 pc(s)
Other
Grey
145 mm
100 mm
Steel
IP65
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3284583 Wieland Electric 75.450.0014.3 FCS 16 5 SA SAM50G Feeder module Content 1 pc(s)
Description
Feeder module for flat line PODIS CON 5G16 connection via round line; M50 cable gland; 5-pin; power specifications according to IEC 100 A; 690 V; 6kV/3; power specifications according to UL 61 A; 600 V; protection type IP65; screw terminals max. 35 mm² single/fine wire; max. Cable diameter 38 mm; gray housing; mounting position arbitrary; outer dimensions L x W x H 300 x 145 x 100 mm
