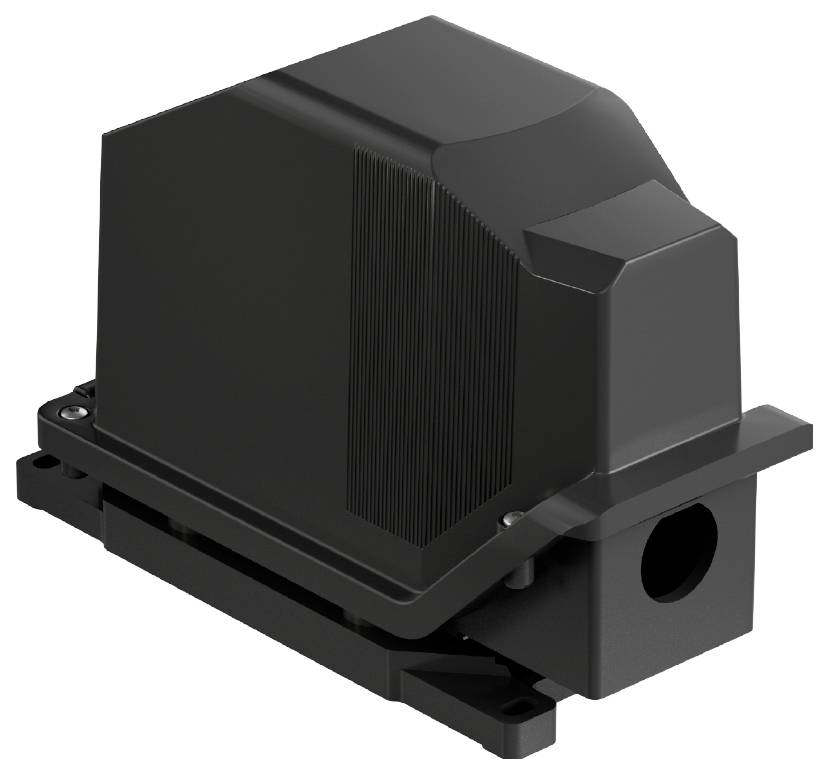

Wieland Electric 75.456.0553.1 Circuit breaker module Black
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Product type
Circuit breaker module
- Factory colour
Black
- Connection
Screw terminals
- Rated voltage
690 V
- Test current
63 A
- Cable Ø (max.)
25 mm
- Cable Ø range
25 mm (max)
- Number of pins
5
IP65
85 mm
TRUE
146 mm
Black
63 A
690 V
5
218 mm
Polyamide (PA)
IP65
1.5-16 mm²
120 °C
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3274975 Wieland Electric 75.456.0553.1 Circuit breaker module Black
Description
PODIS CON 5G16 connection module with the option of integrating series installation devices (3 TE)
For permanent wiring
For M32 cable gland (available as accessory); 5-pin
Power specifications according to VDE 63 A; 690 V; 6kV/3; protection type IP65; penetration contact
Torx 15; screw terminals max. 16 mm² single/fine-wired; max. cable diameter 25 mm; housing black; mounting position arbitrary; outer dimensions L x W x H 218 x 84 x 146 mm
This text is machine translated.
For permanent wiring
For M32 cable gland (available as accessory); 5-pin
Power specifications according to VDE 63 A; 690 V; 6kV/3; protection type IP65; penetration contact
Torx 15; screw terminals max. 16 mm² single/fine-wired; max. cable diameter 25 mm; housing black; mounting position arbitrary; outer dimensions L x W x H 218 x 84 x 146 mm
This text is machine translated.
