Buy Wieland Electric 75.456.1155.1 Circuit breaker module Black

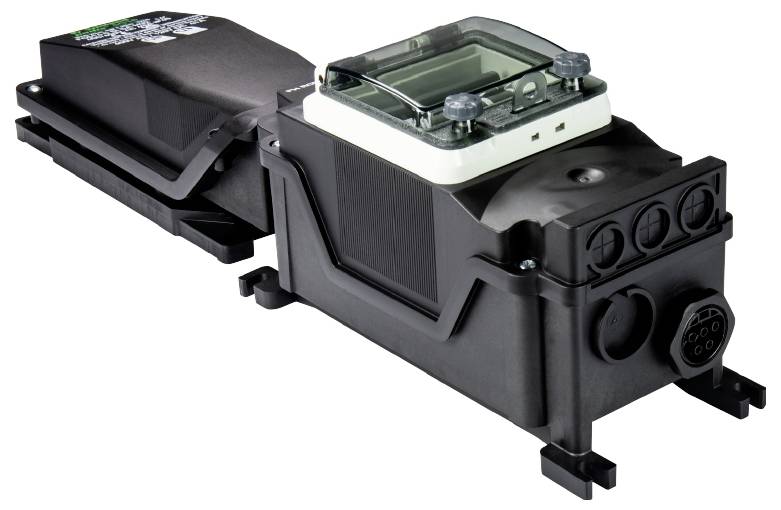

A black electronic device plug with a transparent casing, multiple ports, and a press button on the top surface.

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 264.71 / piece)

€ 264.71

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Circuit breaker module

Factory colour: Black

Rated voltage: 400 V

Test current: 16 A

Number of pins: 5

: IP65

Series: RST20i5

: 100 mm

: TRUE

: 126 mm

: Black

: 16 A

: 400 V

: 5

: 438.8 mm

: Polyamide (PA)

: IP65

: Black

: 120 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3274998 Wieland Electric 75.456.1155.1 Circuit breaker module Black

Description

Podis CON 5G16 security module; combines flat cable tap and decentralized protection; internally a 4-pin FI/LS type A with tripping characteristics C16 A / 30 mA is installed and wired; with an integrated plug-in output RST20i5 in black; lockable with padlock; color black

This text is machine translated.
